Oscilloscope measuring lead 60MHz
In stock under 5 pcs
SKU#: MJ-PP80
Oscilloscope measuring lead 60MHz
In stock under 5 pcs
SKU#: MJ-PP80

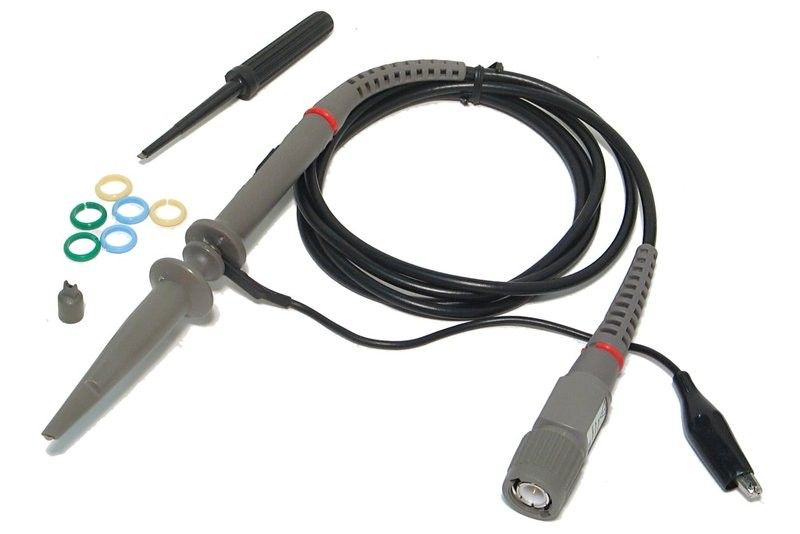

Includes a bundle of color rings and an adjustment tool. The tip of the probe hook is not gold-plated, but the probe pin hidden in the picture is. Includes a pin extractor for IC measurements.
| TECHNICAL SPECIFICATIONS | 1:1 | 1:10 |
Frequency band |
6MHz | 60MHz |
Resistance |
1MΩ | 10MΩ |
Voltage rating |
200Vpk | 600Vpk |
Capacitance |
80pF-115pF | 18,5pF-22,5pF |
Compensation |
--- |
15-40pF |
Quantity discount
| Quantity (kpl) | Price | |
|---|---|---|
| 10+ | undefined% | 10,22 € / pcs |
12,00 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home AccessoriesMeasuring Equipment AccessoriesSamples Oscilloscope measuring lead 60MHz
- SKU MJ-PP80
- Attributes
- Length 1,2m
- Bandwidth 60MHz
- Click for more details http://www.hantek.com/english/produce_list.asp?unid=71
- Click for more details http://www.hantek.com/english/produce_list.asp?unid=71
