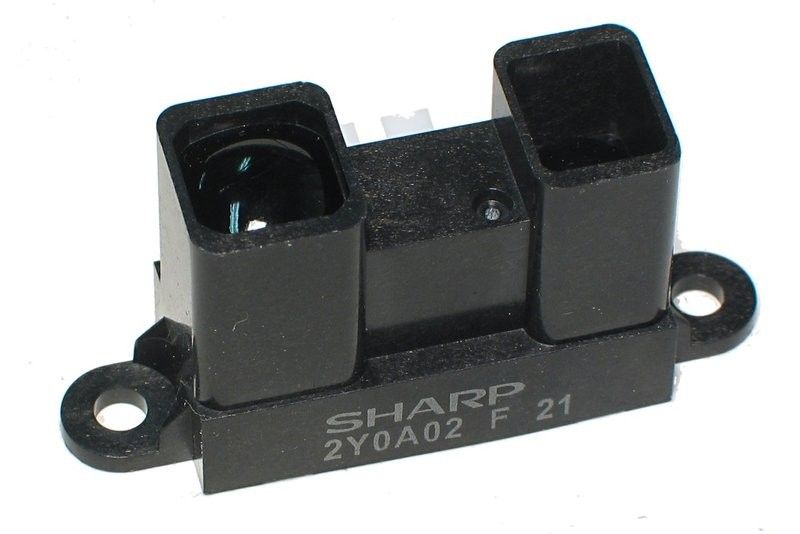

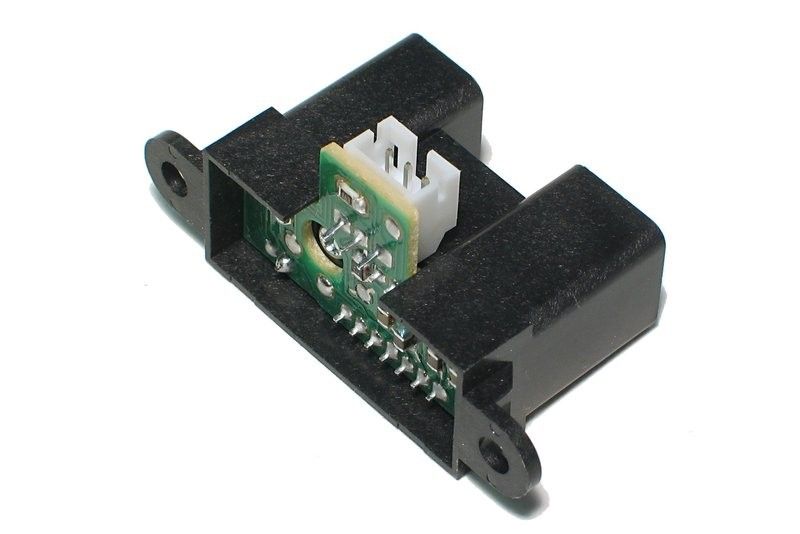

OPTICAL DISTANCE SENSOR WITH VOLTAGE OUTPUT 20...150CM

Name: OPTICAL DISTANCE SENSOR WITH VOLTAGE OUTPUT 20...150CM
Brand: Sharp
SKU: GP2Y0A02YK0F
Price: 10.02 EUR
Availability: OutOfStock

Temporarily out of stock

SKU#: GP2Y0A02YK0F

OPTICAL DISTANCE SENSOR WITH VOLTAGE OUTPUT 20...150CM

OPTICAL DISTANCE SENSOR WITH VOLTAGE OUTPUT 20...150CM

Temporarily out of stock

SKU#: GP2Y0A02YK0F

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Sharp
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

operation is based on IR reflection from the object
the effects of material differences and temperature variations are minimized by internal processing
0,2 ... 1,5 m distance as a function of voltage which requires software linearization (see datasheet)
easy to connect directly to a microcontroller's A/D converter
approximately twenty measurements per second
Operating voltage: 4,5 ... 5,5V
Current consumption: 33mA
Operating temperature: -10 ... +60°C
Distance between mounting holes: 37 mm

Product Information

Availability Removed from selection
Manufacturer Sharp
Product path Home Components Sensors Distance Sensors OPTICAL DISTANCE SENSOR WITH VOLTAGE OUTPUT 20...150CM
SKU GP2Y0A02YK0F
Attributes
- Dimensions 29.5 x 13 x 21.6 mm
- Dimensions 29,5 x 13 x 21,6 mm
