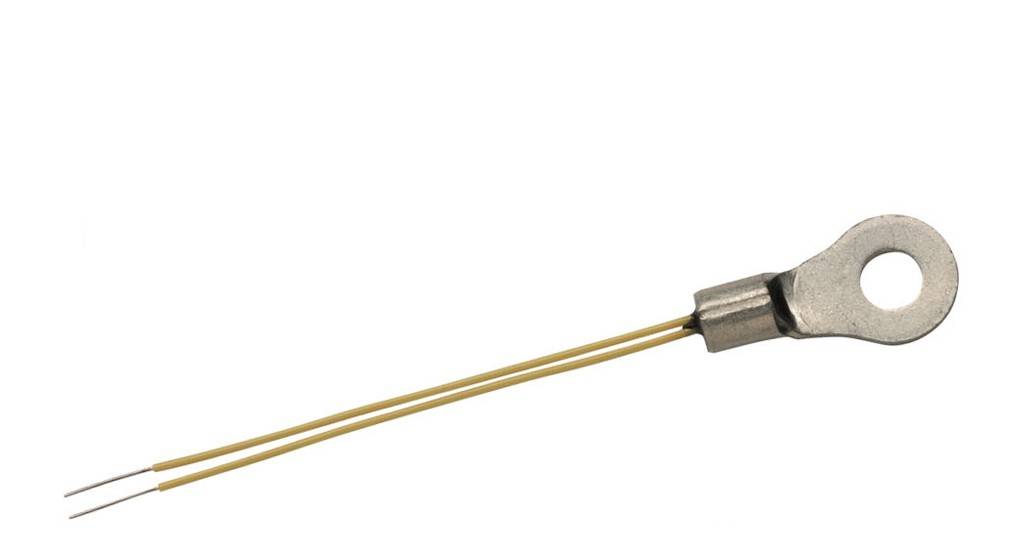

Vishay NTCALUG02A103FLA – 10 kΩ NTC temperature sensor with ring terminal
The Vishay NTCALUG02A103FLA is an NTC thermistor designed for precise surface temperature measurement. The sensor is mounted in a ring terminal, allowing quick and reliable attachment to, for example, cooling fins, motors, power electronics and batteries. A low thermal gradient construction improves measurement accuracy, especially in thermally critical applications.
Features
- NTC thermistor, nominal resistance 10 kΩ @ 25 °C
- B25/85 value 3435 K
- Resistance tolerance ±1 %
- B-value tolerance ±1 %
- Ring terminal for easy screw mounting
- PEEK-insulated leads, length 45 mm
- Operating temperature −55...+125 °C
- AEC-Q200 approved for automotive applications
- RoHS and REACH compliant
Technical specifications
- Manufacturer: Vishay BC Components
- Part number: NTCALUG02A103FLA
- Resistance @ 25 °C: 10 kΩ
- B25/85: 3435 K
- Mounting: Ring terminal (Ring Lug)
- Lead length: 45 mm
- Operating temperature: −55...+125 °C
- Rating: Automotive Grade, AEC-Q200
Applications
- Temperature monitoring of cooling fins
- Power electronics and inverters
- Battery pack temperature measurement
- Temperature monitoring in electric vehicles and charging equipment
- Industrial automation
- Power supplies and UPS systems
- Home appliances and HVAC equipment
- Temperature monitoring of motors and generators
NTCALUG02A103FLA provides a reliable and accurate solution for surface temperature measurement in demanding industrial, energy and vehicle applications. Its screw-on ring terminal enables good thermal contact and long-term measurement stability.
