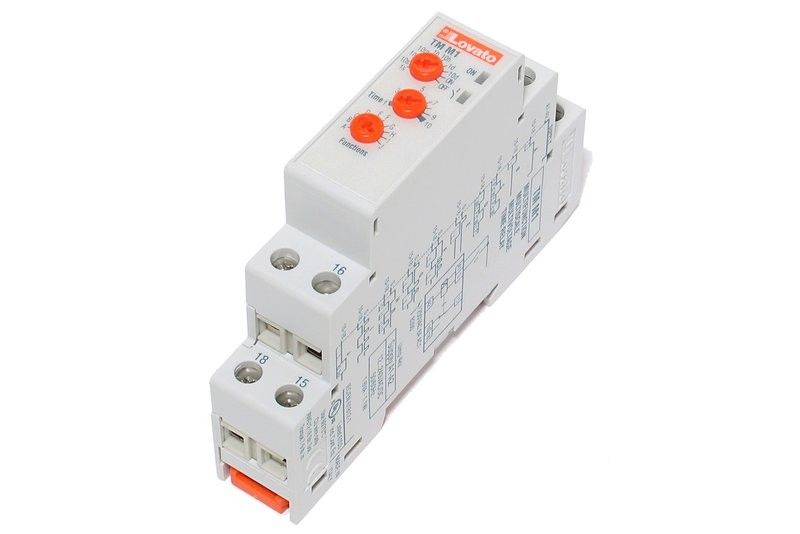

MULTIFUNCTION DIN-RAIL TIMER RELAY 12-240VAC/DC

Name: MULTIFUNCTION DIN-RAIL TIMER RELAY 12-240VAC/DC
Brand: -
SKU: RMT-TMM1
Price: 54.22 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RMT-TMM1

In stock under 5 pcs

SKU#: RMT-TMM1

wide operating voltage: 12VDC - 240VAC
- POWER ON indicator
- power consumption approx. 1.1W
- feed terminals A1 and A2
- external control to terminal S
1-pole changeover contact
- terminals 15, 16, 18
- switch indicator
- contacts 8A 250VAC
adjustable operating cycle 1 second ... 10 days and ON and OFF

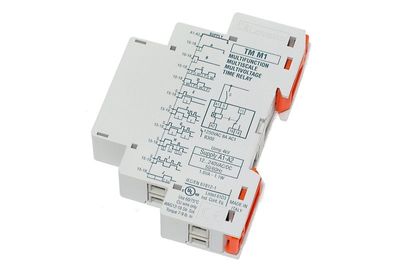

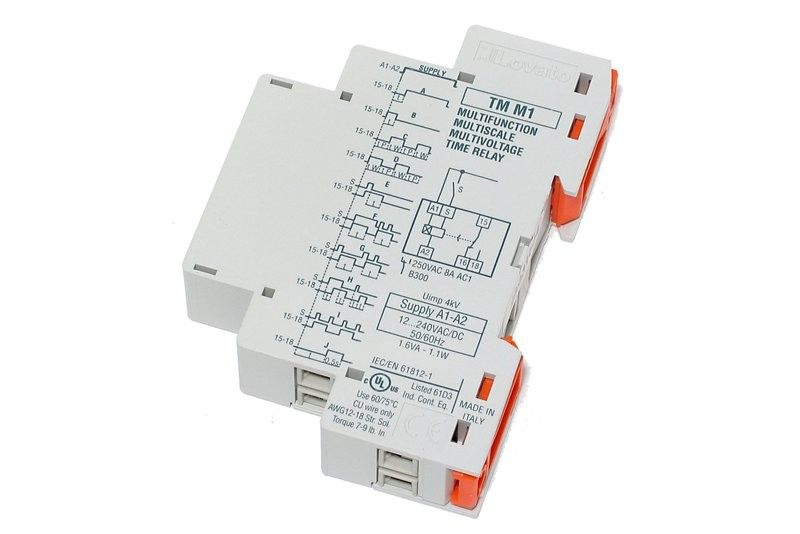

10 different timer functions (selector dial A...J) - see diagram in additional image

Quantity discount

Quantity (kpl)		Price
10+	undefined%	49,87 €

54,22 €

In stock

Add a comment about the product

Product Description

wide operating voltage: 12VDC - 240VAC
- POWER ON indicator
- power consumption approx. 1.1W
- feed terminals A1 and A2
- external control to terminal S
1-pole changeover contact
- terminals 15, 16, 18
- switch indicator
- contacts 8A 250VAC
adjustable operating cycle 1 second ... 10 days and ON and OFF
10 different timer functions (selector dial A...J) - see diagram in additional image

Availability In stock
EAN 8013975147108
Product path Home Components Electromechanical Components Relays Timer Relays MULTIFUNCTION DIN-RAIL TIMER RELAY 12-240VAC/DC
SKU RMT-TMM1
Attributes
- Manufacturer's model Lovato TM M1
