OWON MSO7062TD digital oscilloscope + logic analyzer, 60 MHz

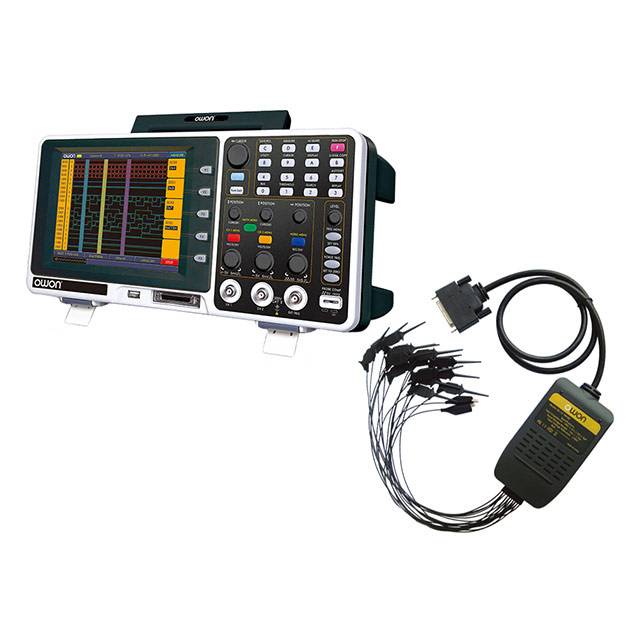

The OWON MSO7062TD is a versatile mixed-signal oscilloscope (MSO) that combines a
digital storage oscilloscope and a 16-channel logic analyzer in the same
measuring instrument. It is particularly suitable for electronics design, troubleshooting,
service, product development and teaching use.
The oscilloscope has two analog measurement channels, 60 MHz bandwidth and
1 GS/s sampling rate. The large 8-inch color TFT-LCD display facilitates
inspection of both analog and digital signals.
Features
- Bandwidth: 60 MHz
- Analog channels: 2
- Logic analyzer: 16 digital channels
- Sampling rate: up to 1 GS/s
- Memory depth: 2 Mpts
- Display: 8" TFT color display, 640 × 480
- Input impedance: 1 MΩ / 15 pF
- Typical rise time: 5.8 ns
- FFT function: for frequency-domain analysis
- Automatic measurements: 20 measurement functions
- Auto Scale: automatic signal fitting to the display
- Interface: USB
- Supply voltage: 100–240 VAC
Mixed Signal measurement
The MSO7062TD enables investigation of analog and digital signals with the same
instrument. The integrated 16-channel logic analyzer is suitable, for example, for
troubleshooting digital circuits, control signals and embedded systems.
Functions
- Digital storage oscilloscope (DSO)
- 16-channel logic analyzer (LA)
- Automatic measurements
- Cursor measurements
- FFT analysis
- Auto Scale
- Waveform save and recall
- USB data transfer and USB storage support
Includes
- OWON MSO7062TD oscilloscope
- 2 × passive 10:1 probes
- Logic analyzer module
- USB cable
- Power cord
- User manual
Manufacturer: OWON
Manufacturer part number: MSO7062TD
Product type: Mixed Signal Oscilloscope (MSO)
