Key Features

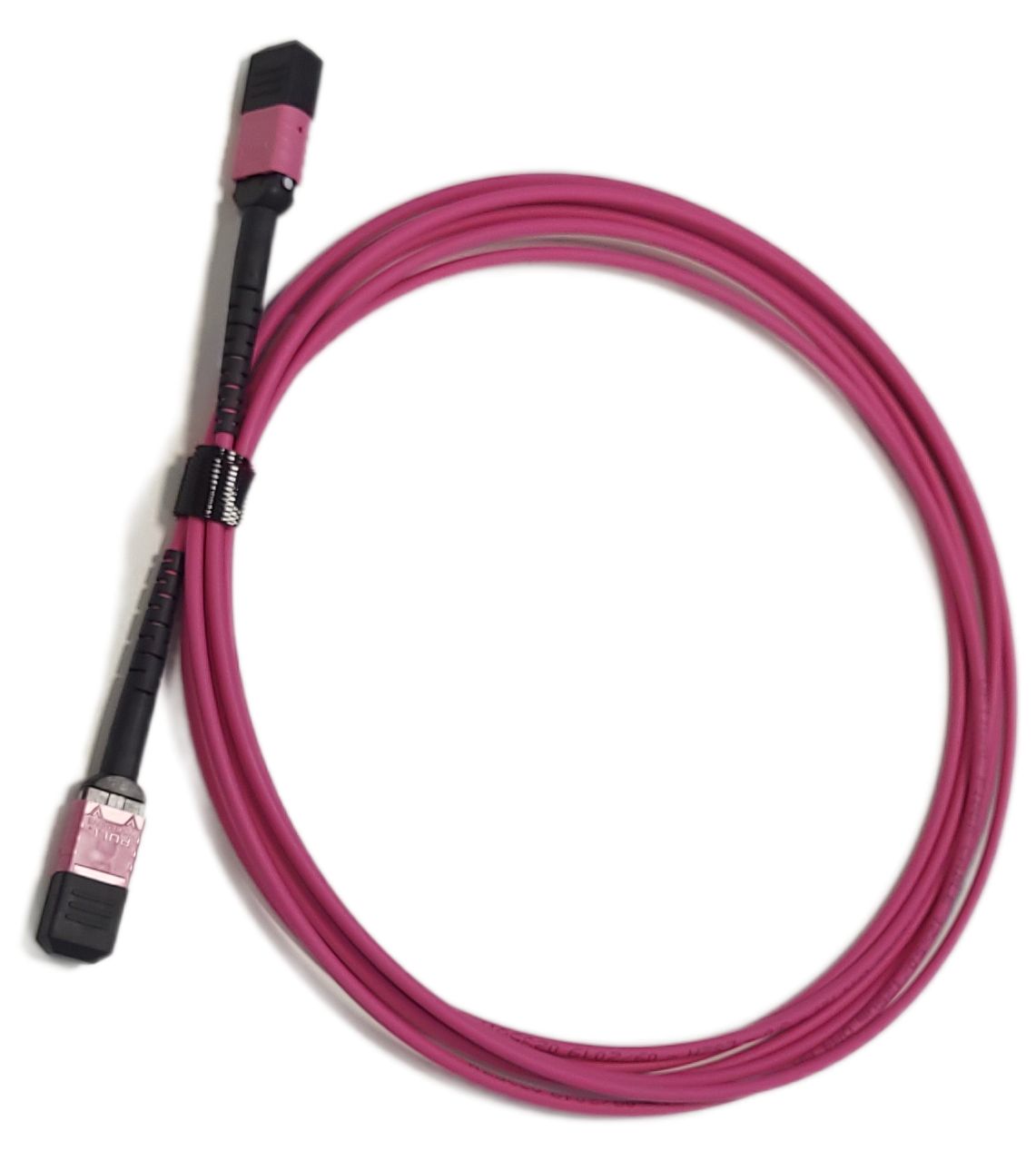

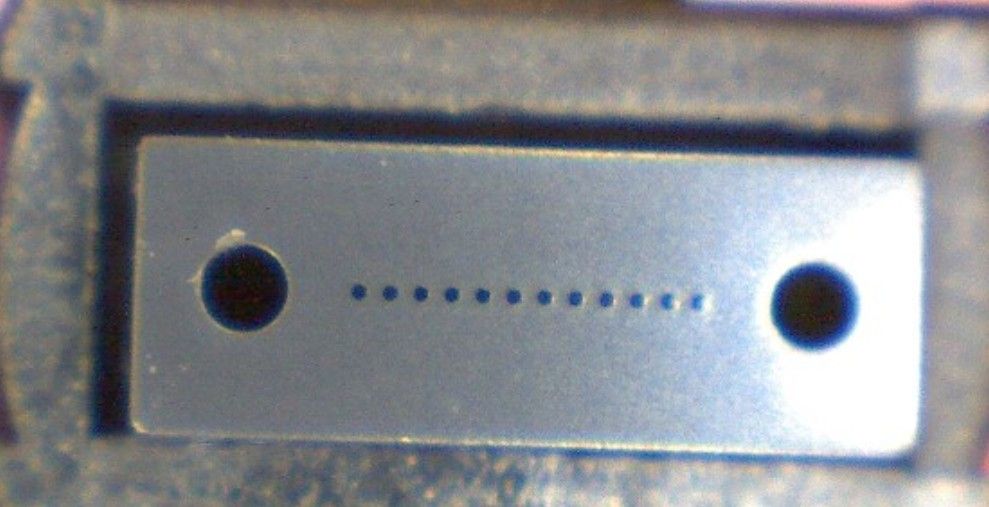

• Connector type: MPO female 6 MPO female (without guide pins)
• Number of fibers: 12 fibers
• Fiber type: OM4 multimode 50/125 µm (laser-optimized)
• Length: 3 meters
• Polarity: Type B (cross-over)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Magenta (per OM4 standard)
• Additional attenuation: ≤0.6 dB (standard), ≤0.35 dB (elite)
• Return loss: ≥25 dB
• Compatibility: IEC 61754-7, TIA/EIA 604-5, RoHS
• Warranty: Limited lifetime warranty

Technical Specifications

• Cable diameter: 3.0 mm
• Polish: UPC
• Operating temperature: 10°C 6 +70°C
• Bandwidth: Up to 100G Ethernet
• Compatible devices: QSFP+ SR4, QSFP28 SR4
• Applications: Data centers, switch connections, high-density patching
