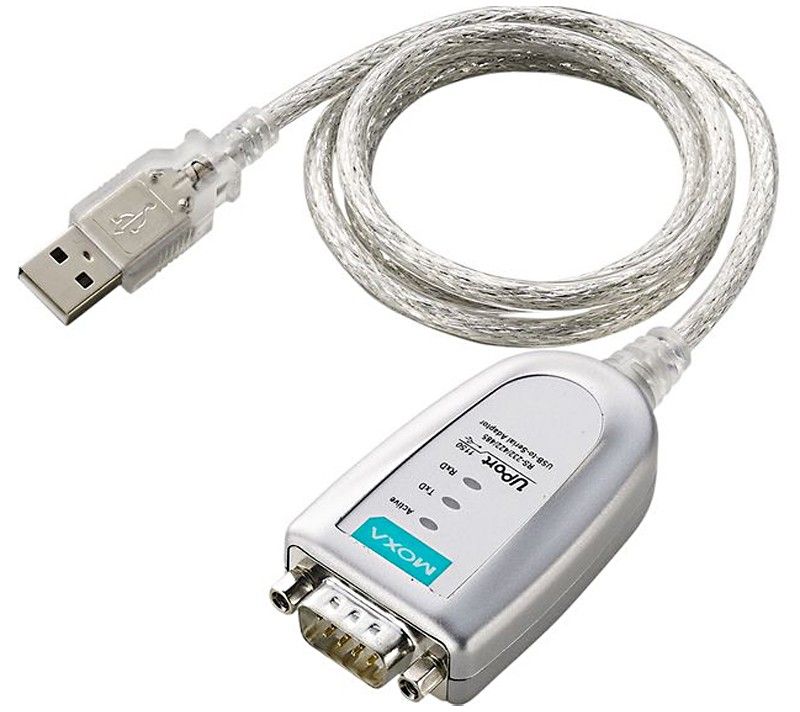

The UPort®1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort®1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Features

• Compatible with USB 2.0
• Full-speed USB operation at up to 12 Mbps
• USB plug & play, no additional I/O or IRQ required
• Certified drivers provided for Windows (including Vista), WinCE 5.0, and Linux
• Serial transmission speed up to 921.6 kbps
• 64-byte FIFO and built-in hardware and software flow control
• Terminal block adapter for easy wiring

Specifications

• Connectors: USB type-A, D9 male
• Serial standards: RS-232/422/485
• Cable length: 0,8m
• Baudrate: 50 bps to 921.6 kbps
• 15 KV ESD protection for all serial ports
• Three LEDs: Active, TxD, RxD
• Operating temperature: 0 to 55°C

Input Voltage

• 12/24/48 VDC
