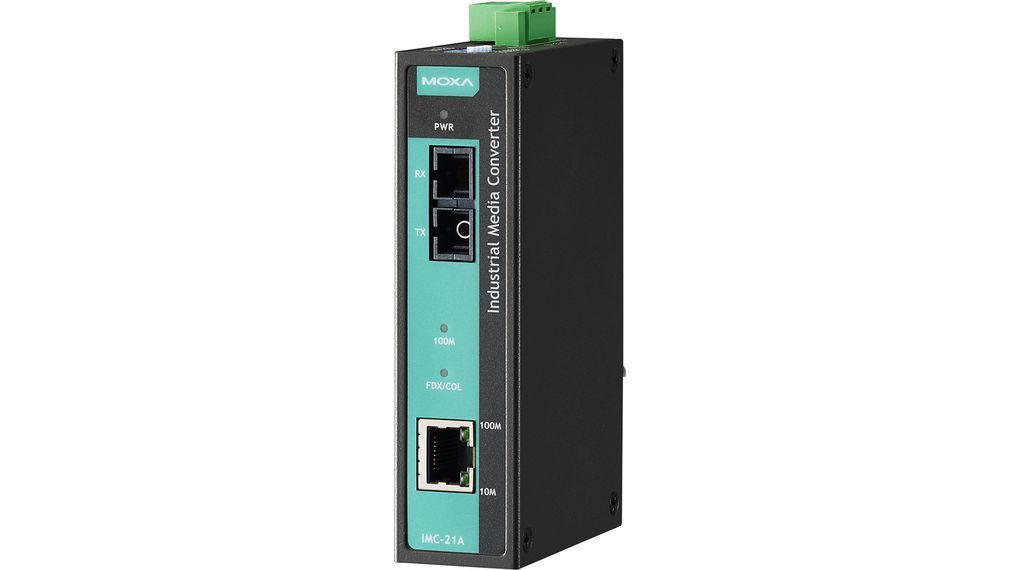

Features:

• 1 pcs of 10/100BaseT(X) Ports (RJ45 connector)
• 1 pcs of 100BaseFX Ports (multi-mode SC connector)
• Magnetic Isolation Protection 1.5 kV (built-in)
• IP30-rated metal housing
• -10 to 60°C operating temperature range
• DIN-rail mountable

Standards and Certifications:

• Safety

EN 60950-1, UL 60950-1

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11

• Environmental Testing

  IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3

• Vibration

  IEC 60068-2-6

Input Voltage:

• 12 to 48 VDC
