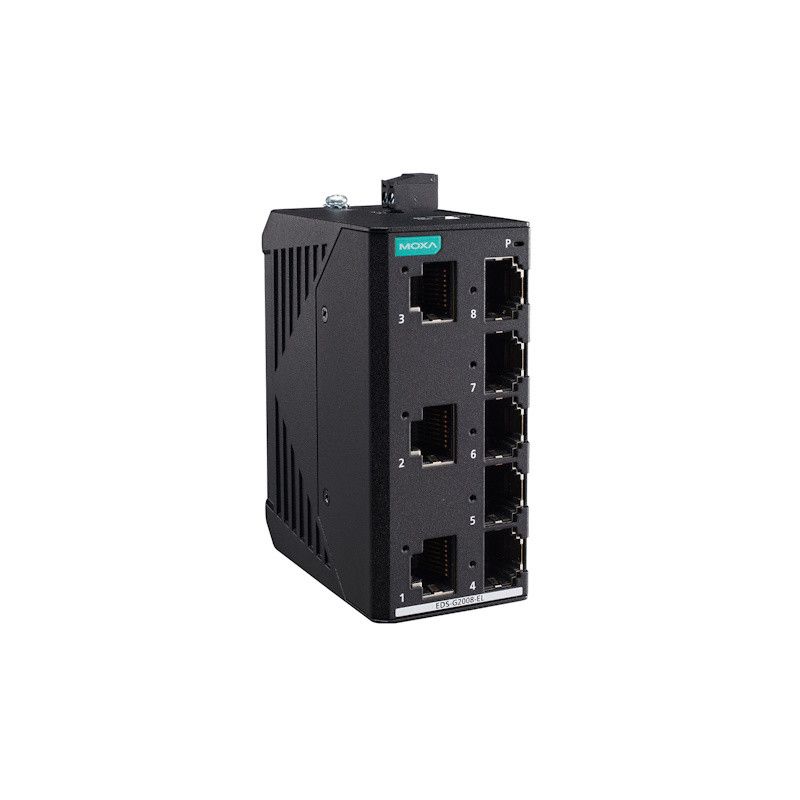

Features:

• 8 x 10/100/1000BaseT(X) Ethernet ports (RJ45 connectors)
• Compact and lightweight metal housing, easy DIN-rail or wall mounting (accessory)
• Quality of Service (QoS) and Broadcast Storm Protection (BSP) support
• Wide input voltage range and overcurrent/polarity protection
• Operating temperature:
  • EDS-G2008-EL: -10 – +60 °C
  • EDS-G2008-EL-T: -40 – +75 °C

Technical specifications:

• Full-/half-duplex mode
• Automatic MDI/MDI-X detection
• Automatic speed detection
• MAC address table size: 8K
• Buffer memory: 1.5 Mbit
• Data handling: Store and Forward

Supported standards:

• IEEE 802.3 (10BaseT)
• IEEE 802.3u (100BaseT(X))
• IEEE 802.3ab (1000BaseT(X))
• IEEE 802.1p (Priority classes)
• IEEE 802.3x (Flow control)

Network features:

• Quality of Service (QoS)
• Broadcast Storm Protection (BSP)

Interfaces and power supply:

• 1 x detachable 2-pin screw terminal
• Input voltage: 12/24/48 VDC
• Operating range: 9.6 – 60 VDC
• Power consumption: 0.21 A (max.)
• Overcurrent protection: Yes
• Polarity protection: Yes

Physical characteristics:

• Dimensions: 18 x 81 x 65 mm
• Weight: 120 g
• Enclosure: Metal
• Mounting: DIN-rail or wall mounting (accessory)
• Storage temperature (packaged): -40 – +85 °C
• Relative humidity: 5 – 95 % (non-condensing)

Standards and certifications:

Safety:

• UL 61010-2-201
• EN 62368-1 (LVD)

EMC (electromagnetic compatibility):

• EN 55032 / EN 55035
• EN 61000-6-2 / EN 61000-6-4

EMI (electromagnetic interference):

• CISPR 32
• FCC Part 15B, Class A

EMS (electromagnetic susceptibility):

• IEC 61000-4-2 (ESD): contact 6 kV, air 8 kV
• IEC 61000-4-3 (Radiated disturbances): 80 MHz – 1 GHz, 20 V/m
• IEC 61000-4-4 (Fast transients): 1 kV (power and signal)
• IEC 61000-4-5 (Surge): 1 kV (power and signal)
• IEC 61000-4-6 (Conducted disturbances): 10 V
• IEC 61000-4-8 (Magnetic field)

Mechanical endurance:

• IEC 60068-2-27 (Shock)
• IEC 60068-2-6 (Vibration)
• IEC 60068-2-32 (Drop)
