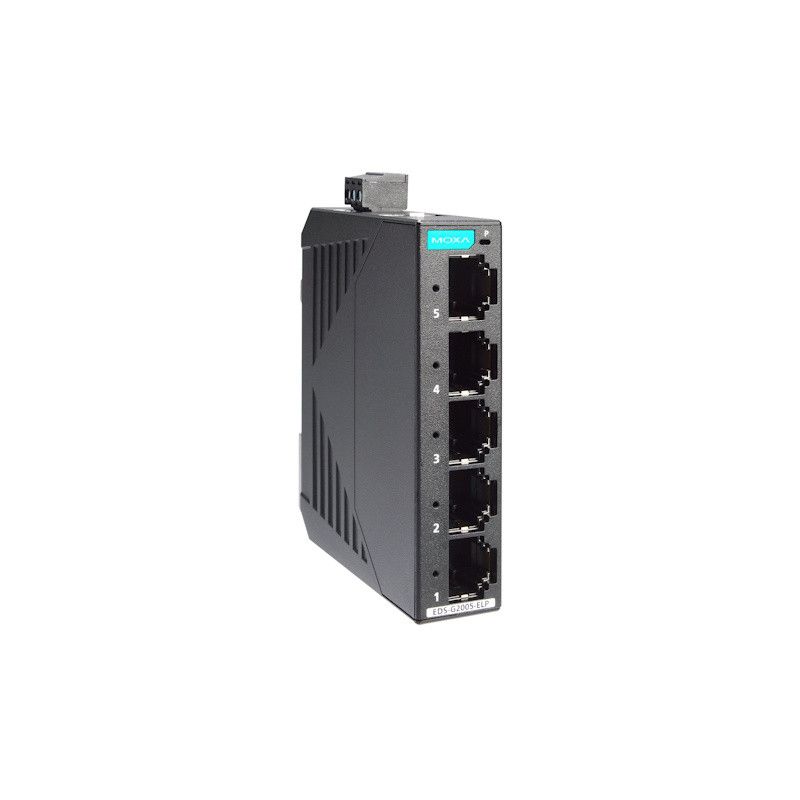

Features

• 5 x 10/100/1000BaseT(X) Ethernet ports (RJ45 connectors)
• Compact plastic housing, easy DIN-rail or wall mounting (with accessory)
• Quality of Service (QoS) and broadcast storm protection (BSP) support
• Wide operating voltage range and overcurrent/polarity protection
• Operating temperature range:
  • EDS-G2005-ELP: -10 – +60°C (14 – 140°F)

Technical specifications

• Full-/half-duplex mode
• Automatic MDI/MDI-X crossover
• Automatic speed negotiation
• MAC address table size: 4K
• Buffer memory size: 1.5 Mbit
• Data handling: Store and Forward

Supported standards

• IEEE 802.3 (10BaseT)
• IEEE 802.3u (100BaseT(X))
• IEEE 802.3ab (1000BaseT(X))
• IEEE 802.3x (Flow Control)
• IEEE 802.1p (Priority)

Network features

• Quality of Service (QoS)
• Broadcast storm protection (BSP)

Connections and power

• 1 x removable 3-pin terminal block
• Input voltage: 12/24/48 VDC
• Operating range: 9.6 – 60 VDC
• Input current: 0.21 A (max.)
• Overcurrent protection: Yes
• Polarity protection: Yes

Physical characteristics

• Dimensions: 19 x 81 x 65 mm (0.75 x 3.19 x 2.56 inches)
• Weight: 90 g (0.2 lb)
• Housing: Plastic
• Mounting: DIN-rail or wall mount (with accessory)
• Storage temperature (packaged): -40 – +85°C (-40 – 185°F)
• Relative humidity: 5 – 95% (non-condensing)

Standards and certifications

Safety

• UL 61010-2-201
• EN 62368-1 (LVD)

EMC (electromagnetic compatibility)

• EN 55032 / EN 55035
• EN 61000-6-2 / EN 61000-6-4

EMI (electromagnetic interference)

• CISPR 32
• FCC Part 15B, Class A

EMS (electromagnetic susceptibility)

• IEC 61000-4-2 (ESD): contact: 6 kV; air: 8 kV
• IEC 61000-4-3 (Radiated immunity): 80 MHz – 1 GHz, 20 V/m
• IEC 61000-4-4 (Burst): Power: 1 kV; Signal: 1 kV
• IEC 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV
• IEC 61000-4-6 (Conducted disturbances): 10 V
• IEC 61000-4-8 (Magnetic field)

Mechanical endurance

• IEC 60068-2-27 (Shock)
• IEC 60068-2-6 (Vibration)
• IEC 60068-2-32 (Free fall)

Package contents

• Moxa EtherDevice™ Switch
• Quick installation guide (printed)
• Warranty card
