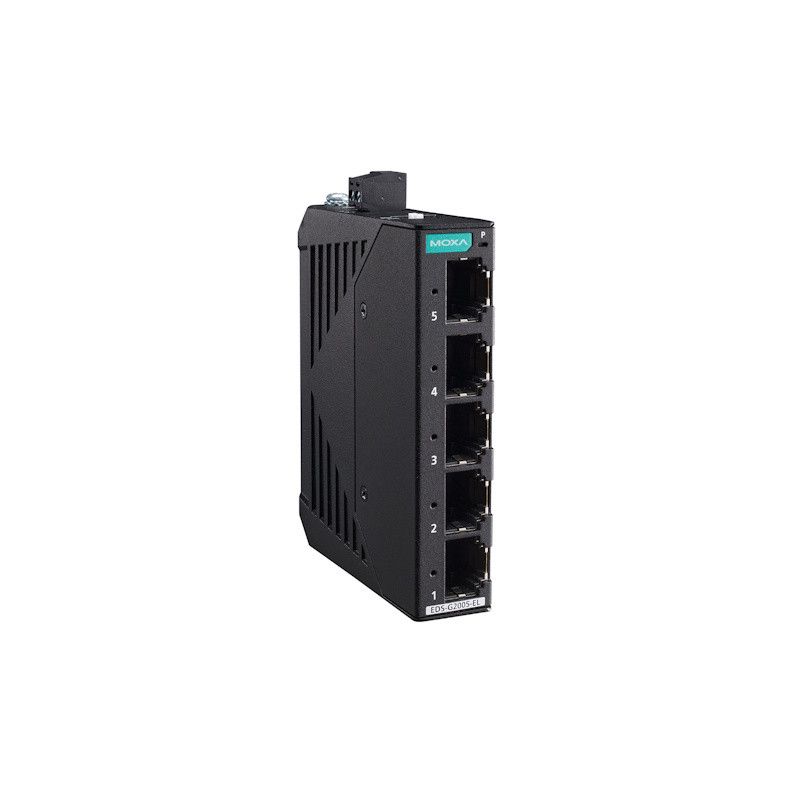

Features

• 5 x 10/100/1000BaseT(X) Ethernet ports (with RJ45 connectors)
• Compact and lightweight metal enclosure, easy installation on DIN rail or wall (with optional accessories)
• Support for Quality of Service (QoS) and Broadcast Storm Protection
• Wide operating voltage range and over-current/polarity protection
• Operating temperature:
  • EDS-G2005-EL: -10 – +60 °C
  • EDS-G2005-EL-T: -40 – +75 °C

Technical specifications

• Full-/half-duplex mode
• Auto MDI/MDI-X detection
• Auto speed detection
• MAC address table size: 4K
• Buffer memory: 1,5 Mbit
• Data handling: Store and Forward (stores and forwards)

Supported standards

• IEEE 802.3 (10BaseT)
• IEEE 802.3u (100BaseT(X))
• IEEE 802.3ab (1000BaseT(X))
• IEEE 802.1p (Priority queuing)
• IEEE 802.3x (Flow control)

Network features

• Quality of Service (QoS)
• Broadcast Storm Protection (BSP)

Connections and power supply

• 1 x removable 2-pin screw terminal
• Input voltage: 12/24/48 VDC
• Operating range: 9,6 – 60 VDC
• Power consumption: 0,21 A (max.)
• Over-current protection: Yes
• Polarity protection: Yes

Physical characteristics

• Dimensions: 18 x 81 x 65 mm
• Weight: 120 g
• Enclosure: Metal
• Mounting: DIN rail or wall-mount (with optional accessories)
• Storage temperature (packaged): -40 – +85 °C
• Relative humidity: 5 – 95 % (non-condensing)

Standards and certifications

Safety

• UL 61010-2-201
• EN 62368-1 (LVD)

EMC (electromagnetic compatibility)

• EN 55032 / EN 55035
• EN 61000-6-2 / EN 61000-6-4

EMI (electromagnetic interference)

• CISPR 32
• FCC Part 15B, Class A

EMS (electromagnetic susceptibility)

• IEC 61000-4-2 (ESD): contact 6 kV, air 8 kV
• IEC 61000-4-3 (Radiated disturbances): 80 MHz – 1 GHz, 20 V/m
• IEC 61000-4-4 (Fast transients): 1 kV (power and signal)
• IEC 61000-4-5 (Surge): 1 kV (power and signal)
• IEC 61000-4-6 (Conducted disturbances): 10 V
• IEC 61000-4-8 (Magnetic field)

Mechanical ruggedness

• IEC 60068-2-27 (Shock)
• IEC 60068-2-6 (Vibration)
• IEC 60068-2-32 (Free fall)
