Features:

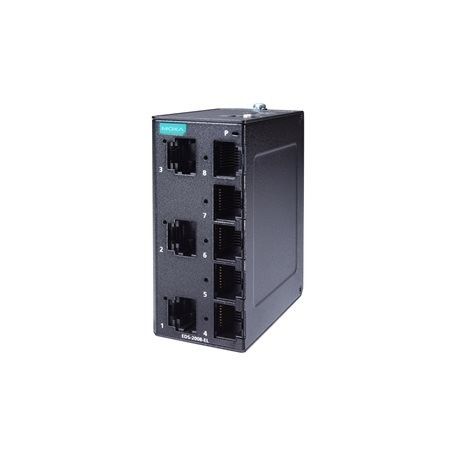

• 8 pcs of 10/100BaseT(X) (RJ45 connector)
• Compact size for easy installation
• QoS supported to process critical data in heavy traffic
• IP40-rated metal housing
• -10 to 60°C operating temperature range

Specifications:

• Full/Half duplex mode
• Auto MDI/MDI-X connection
• Auto negotiation speed

• IEEE 802.3 for 10BaseT
• IEEE 802.1p for Class of Service
• IEEE 802.3u for 100BaseT(X)
• IEEE 802.3x for flow control

• Quality of Service (QoS), Broadcast Storm Protection (BSP)

Standards and certifications:

• Safety

  UL 61010-2-201, EN 62368-1 (LVD)

• EMC

  EN 55032/35

• EMI

  CISPR 22, 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• Shock

  IEC 60068-2-27

• Vibration

  IEC 60068-2-6

• Freefall

  IEC 60068-2-32

Input Voltage:

• 12/24/48 VDC
