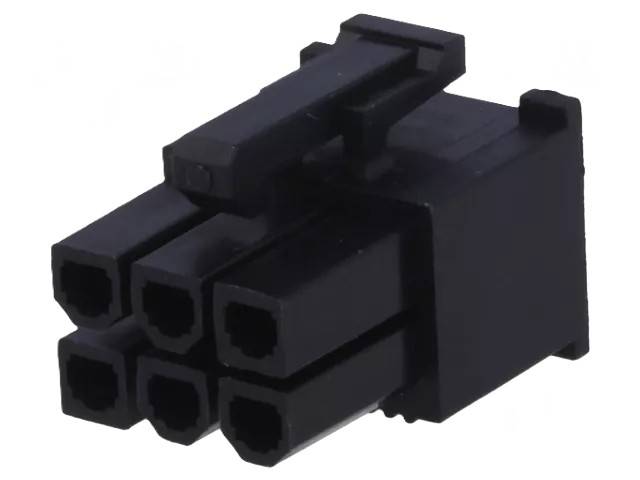

Molex 45559-0002 is a Mini-Fit Jr. series 6-pin dual-row female connector housing. Suitable for power and signal applications such as wire-to-board and wire-to-wire connections. Commonly used in, for example, PCIe power connections.

Technical specifications

• Manufacturer: Molex
• Series: Mini-Fit Jr. (45559)
• Type: Female connector housing (receptacle housing)
• Number of pins: 6
• Number of rows: 2
• Pitch: 4.20 mm
• Mounting: Cable mounting (free hanging)
• Termination: Crimp connector (crimp)
• Rated current: max. 9 A / contact
• Rated voltage: max. 600 V
• Operating temperature: −40 … +105 °C
• Material: Nylon
• Flammability rating: UL94 V-0
• Color: Black

Compatibility

• Fits counterparts of the Mini-Fit Jr. series (e.g. 45558, 45718)
• Compatible contacts: Molex 5556 series

Applications

• Power connections (e.g. PCI Express)
• Industrial and automation equipment
• Internal wiring of electrical devices

Note: The housing is delivered without contacts (crimp terminals sold separately).
