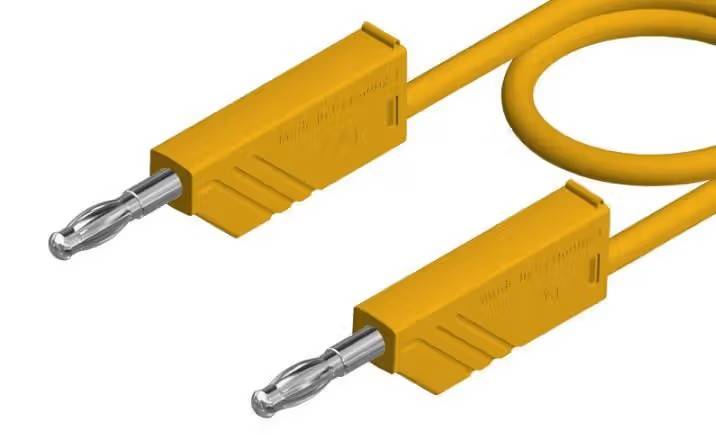

Hirschmann 934065103 MLN 200/1 GE - Test lead 2 m, yellow

Hirschmann Test & Measurement 934065103 (MLN 200/1 GE) is a high-quality measuring lead designed for professional use in electronics, laboratory and service applications. Both ends of the lead have 4 mm banana plugs and stackable 4 mm connector sockets, allowing flexible measurement connections. Double insulation and a highly flexible PVC cable ensure safe and long-lasting use.

Features

• Length 2 metres
• 4 mm banana plugs on both ends
• Stackable 4 mm connector sockets for additional connections
• Highly flexible double-insulated PVC cable
• Conductor cross-section 1,0 mm²
• Rated current 16 A
• Rated voltage 30 VAC / 60 VDC
• Nickel-plated contacts
• Color: yellow
• Operating temperature -15...+70 °C

Technical specifications

• Manufacturer: Hirschmann Test & Measurement
• Product code: 934065103
• Series: MLN 200/1
• Connector type: 4 mm banana plug / stackable socket
• Material: PVC
• Contact material: brass and beryllium copper
• Safety class: CAT I
• Country of origin: Germany

The measuring lead is suitable for multimeters, laboratory equipment, power supplies and other measurement and test systems equipped with 4 mm banana plugs.
