Item

Specification

Condition remark

2-1

Rated voltage

1.3VDC

2-2

Operating voltage

0.9～1.6VDC

2-3

Rated load

Vibraton weight

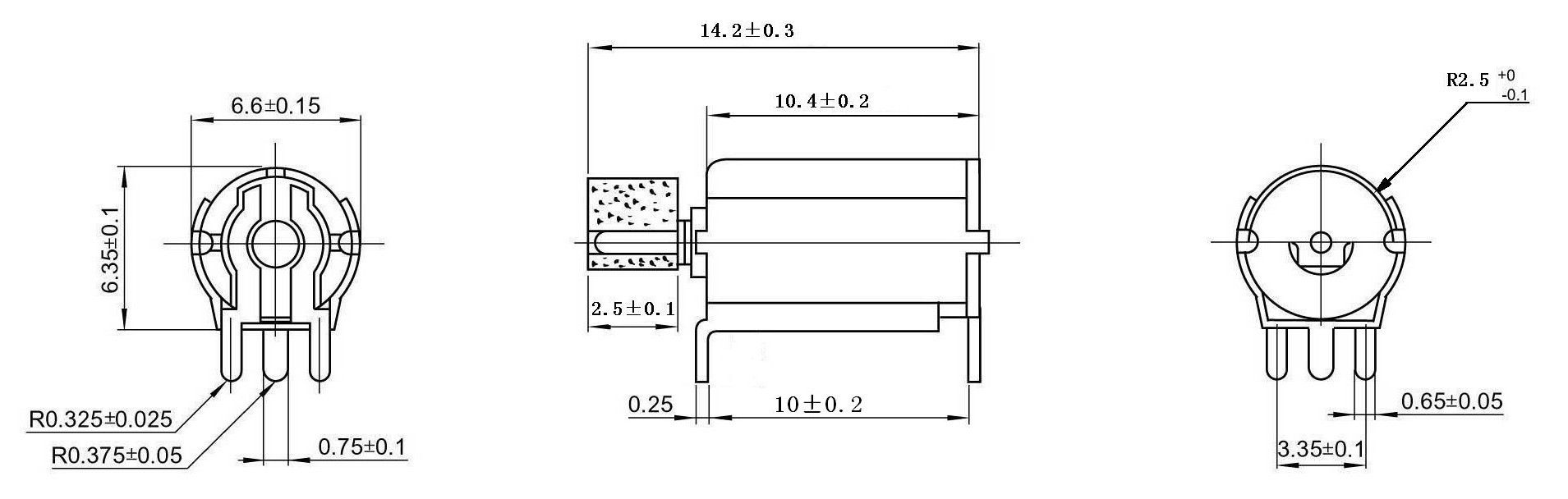

As soecufued in outline drawing

2-4

Rated speed

9000±1500rpm

2-5

Rotation

CW（clockwize）

2-6

Motor Position

All position

2-7

Operating environment

-20¬60°C

10¬90%Rh

2-8

Storage environment

-40~80°C

5~95%Eh

No condensation of moisture

Item

Specification

Condition remark

3-1

Temperature

20±2°C

3-2

Humidity

65±5%RH

3-3

Motor position

Moror shaft horizontal

Lock the motor in a test fixture
