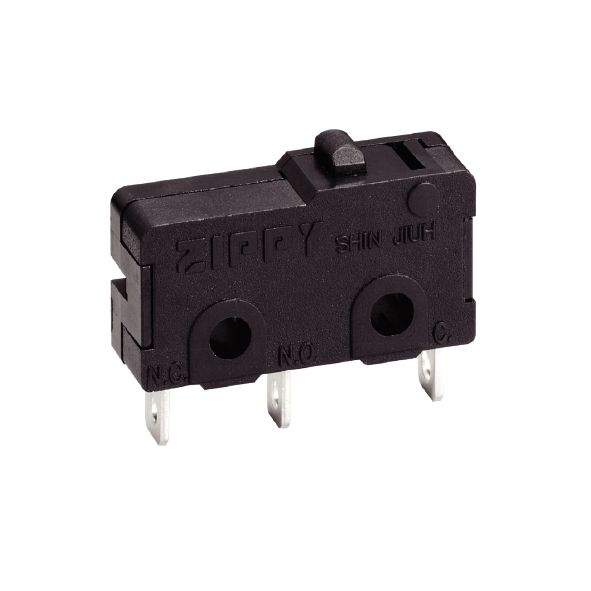

MICRO SWITCH 6A 125/250 VAC
Temporarily out of stock
SKU#: SM1N6S00A0Z
MICRO SWITCH 6A 125/250 VAC
Temporarily out of stock
SKU#: SM1N6S00A0Z
- Operating frequency (mechanical): 120 operations / min
- Operating frequency (electrical): 10~30 operations / min
- Contact resistance: 300mΩ (max)
- Insulation resistance (at 500 VDC): 100MΩ (min)
- Lifetime (mechanical): Min. 10 000 000 operations
- Lifetime (electrical): 5A Min. 10,000 operations
- Rating: 6A 125/250VAC, 6A 30VDC
Quantity discount
| Quantity (kpl) | Price | |
|---|---|---|
| 10+ | undefined% | 2,61 € |
3,12 €
Temporarily out of stock in the online store
Product Description
Product Information
- Availability Temporarily out of stock in the online store
- Manufacturer Zippy Technology Corp
- Product path Home ComponentsElectromechanical ComponentsSwitchesMicro switches MICRO SWITCH 6A 125/250 VAC
- SKU SM1N6S00A0Z
- Attributes
- Color musta
- Voltage class 250V
- Power Class 6A

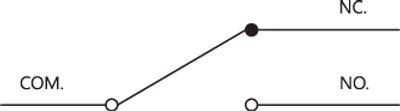

- Number of contacts 1 vaihtokosketin
- Manufacturer's model SM1-N6S-00A0-Z
- Click for more details https://www.zippy.com/ecproductshowdetail.aspx?ps_rfnbr=292
