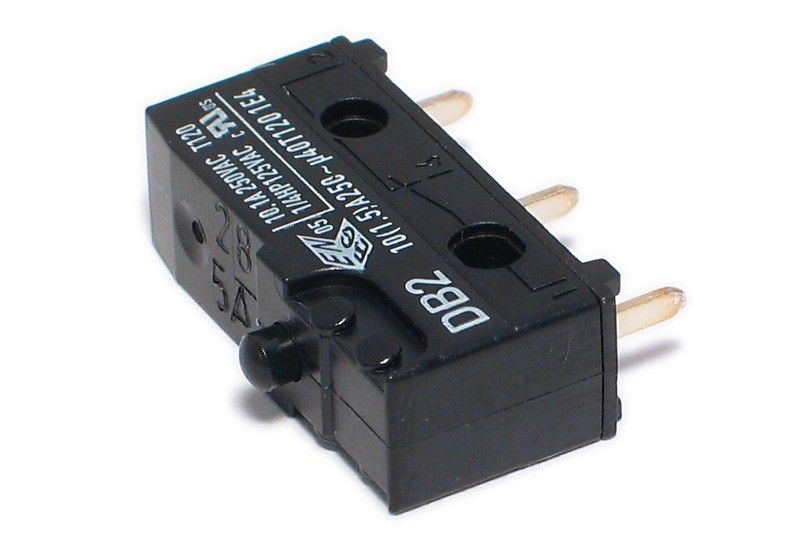

ZF DB2C-C1AA micro switch SPDT 10A
The ZF DB2C-C1AA is a high-quality subminiature micro switch suitable for industrial equipment, automation, household appliances, control devices and various limit switch and sensing applications. The switch features a plunger-actuated snap action mechanism that ensures precise and reliable switching operation and a long mechanical life.
Features
- SPDT changeover contact (1 x changeover switch)
- Snap action operation for fast and accurate switching
- Plunger actuator (plunger actuator)
- Printed circuit board mountable (PCB)
- Compact subminiature construction
- High repeatability and long service life
- Suitable for automation, safety and sensing applications
Technical specifications
- Manufacturer: ZF
- Model: DB2C-C1AA
- Switch type: Micro switch / Snap Action
- Contact configuration: SPDT
- Current rating: 10,1 A
- Voltage: 250 VAC
- Operating force: 2,5 N
- Termination: PCB pins
- Protection class: IP50
- Operating temperature: -40 ... +85 °C
Applications
- Industrial automation
- Limit and position sensing
- Machine control systems
- Household appliances
- Safety devices
- Detection of mechanical movements
