MICRO CONTINUOUS ROTATION ANALOG SERVO 6VDC 15Ncm

Name: MICRO CONTINUOUS ROTATION ANALOG SERVO 6VDC 15Ncm
Brand: Feetech
SKU: SERVO-FS90R
Price: 12.90 EUR
Availability: InStock

Temporarily out of stock

SKU#: SERVO-FS90R

Temporarily out of stock

SKU#: SERVO-FS90R

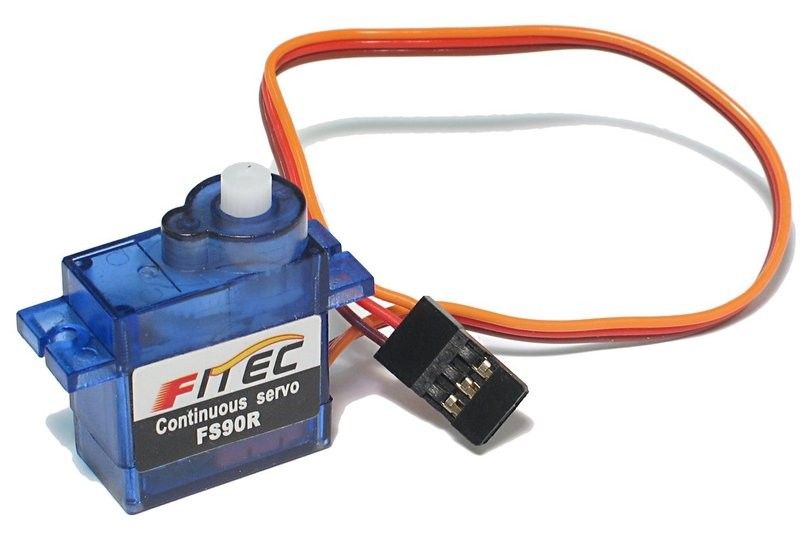

Feetech FS90R - small analog 360° continuous-rotation servo.

Quantity discount

Quantity (kpl)		Price
10+	undefined%	11,60 € / pcs

12,90 €

Temporarily out of stock

Add a comment about the product to my order

Product Description

The greater the PWM control deviation from the neutral point (1,5 ms), the faster it rotates clockwise or counterclockwise.

nopeus ilman kuormaa
- 0,07sek / 60ast @6VDC (= 130RPM)
- 0,09sek / 60ast @4,8VDC (= 100RPM)
virrantarve
- vapaana 200mA @6VDC
- kiinnipidettynä 600mA @6VDC
vääntömomentti 1,5kg per cm (= 15Ncm)
pohjassa säätötrimmeri jolla voi tarkentaa ohjauksen paikallaanolopisteen (oletus 1,5 ms)

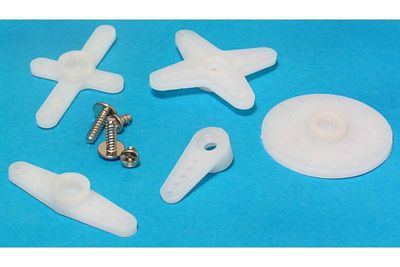

mukana viisi erilaista sovitepalaa (kts. lisäkuva)
kytkentä:
- 1. ruskea = GND
- 2. punainen = VCC
- 3. oranssi = servon ohjaus signaali (PWM)

Availability Temporarily out of stock
Manufacturer Feetech
Product path Home components electromechanical-components Engines Servos MICRO CONTINUOUS ROTATION ANALOG SERVO 6VDC 15Ncm
SKU SERVO-FS90R
Attributes
- Manufacturer's model FS90R
- Click for more details http://www.feetechrc.com/product/analog-servo/micro-1-3kg-cm-360-degree-continuous-rotation-servo-fs90r/
- Dimensions 23.2 × 12.5 × 22 mm
- Supplier code Pololu 2820
