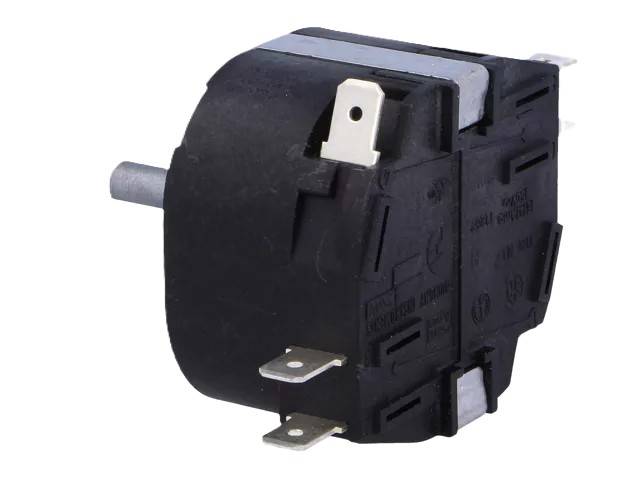

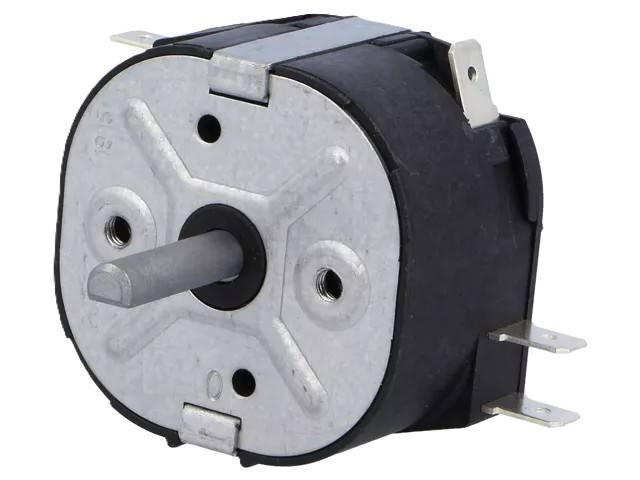

MI2R2066H timing relay 6h 250VAC 16A DPDT

MI2R2066H is a mechanical timing relay from Faucigny Instruments' MI2R series. It is suitable for simple automation applications that require delayed turn-off without a separate control system.

Key features

• Time delay: max. 6 hours
• Function: delay OFF
• Output: DPDT (2 x changeover contact)
• Contact rating: 250 VAC / 16 A
• Number of poles: 6
• Connection: 6.3 mm quick connectors
• Mounting: screw mounting M4 max. 6 mm
• Operating temperature: -30 … +125 °C

Applications

• Fan overrun
• Delayed stop of machines
• Simple automations without a PLC
• Appliance and HVAC applications

Additional information

MI2R2066H is a compact and reliable solution for industrial and OEM applications where a clear and mechanical timing solution is required without programming.
