Here is the new product in our Servo family: a 9 g 180° metal servo with analog feedback. The servo has a built-in metal gear train, which is much more durable than the previous plastic version. It offers a large travel angle and torque, is easy to install, and operates stably and accurately, making it the best choice for micro-robot control and suitable for professionals or developers.
With a compact body of 0.9*0.48*1.28 inches, this servo fits into any tight space, and its torque can be up to 1.5 kg·cm. Because the servo has no limit switch, users can manually make the servo rotate 360 degrees. At the same time, the servo’s power consumption is quite low, so an ordinary battery or USB power source power can provide sufficient energy for normal operation. This servo can be controlled with the Arduino Servo Library, allowing it to rotate about 180° over a pulse range of 500–2500 μsec. Additionally, it can perform more complex tasks and fits a wider range of applications compared to the previous 180° servo. This servo also provides an analog 0–3.3 V feedback signal and can be connected to an MCU to implement closed-loop feedback control.

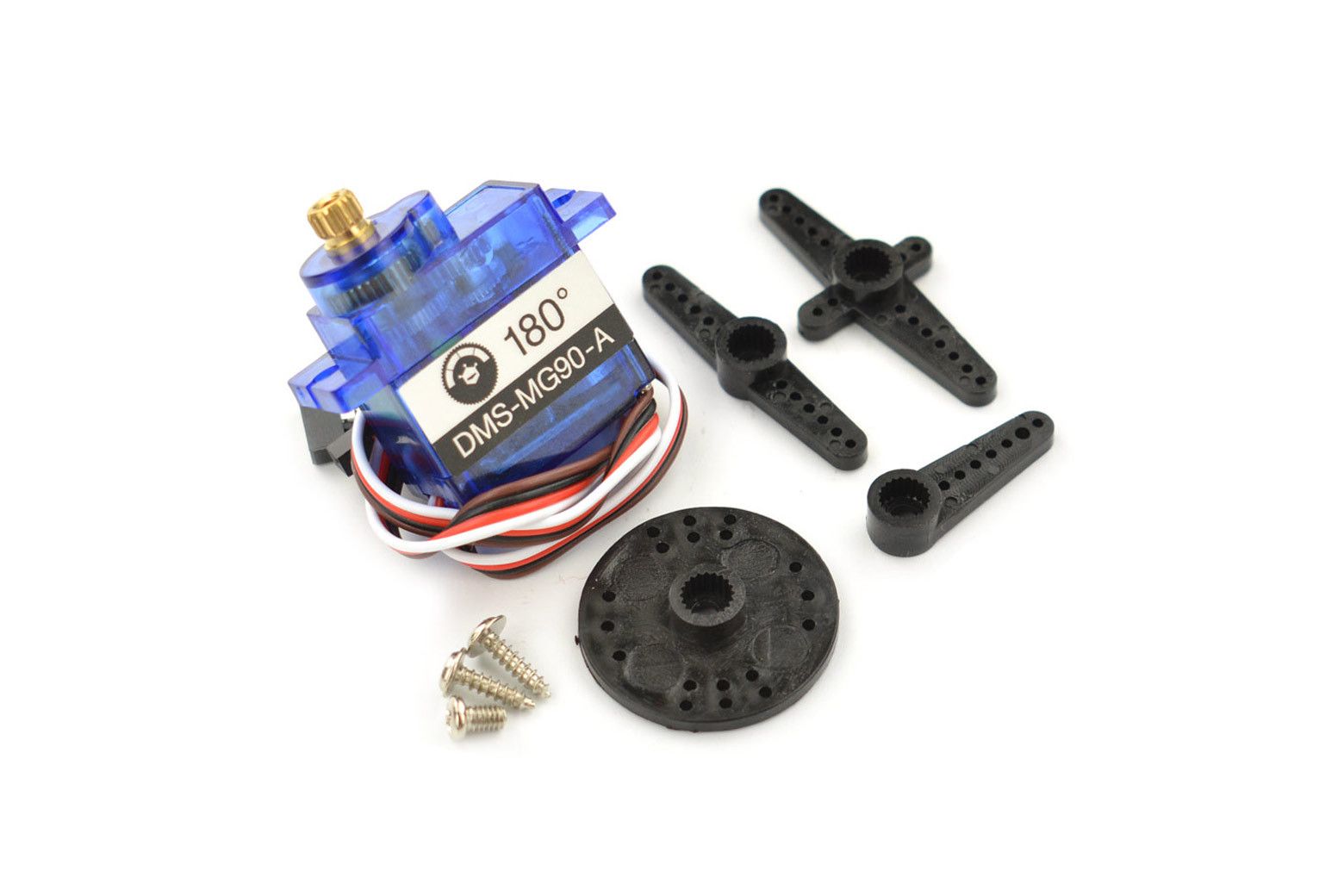

Four different servo horns are included for various usage needs.
Recommended operating voltage: 4.8–6 V. Note that overvoltage or intentionally blocking the servo will permanently damage the product.
Technical specifications:
- Pulse width range: 500–2500 μsec
- Neutral position: 1500 μsec
- Deadband: ≤ 5 μsec
- Operating voltage: 4.8 V~6 V
- Storage temperature: -20 ℃~60 ℃
- Operating temperature: -10 ℃~50 ℃
- Operating range: 180°± 5° (500→2500 μsec)
- Maximum travel: 220°± 10°
- Speed (no load): 0.12±0.01 sec/60° @4.8V; 0.1±0.01 sec/60° @6.0V
- Stall torque: 1.3±0.1 kg·cm @4.8V; 1.5±0.1 kg·cm @6.0V
- Static current: ≦40 ± 5 mA
- Current (no load): 200 ± 20 mA @4.8 V; 220 ± 20 mA @6.0 V
- Current (stall): ≦800 ± 30 mA @4.8 V; ≦1100 ± 30 mA @6.0 V
- Control range: approximately 180° (500→2500 μsec)
- Left and right angle deviation: ≤ 3°
- Centering deviation: ≤ 1°
- Control method: pulse width modulation
- Driver type: digital controller
- Rotation direction: clockwise
- External dimensions: 22.9*12.2*32.5 mm / 0.9*0.48*1.28”
- Weight: 12±1 g
