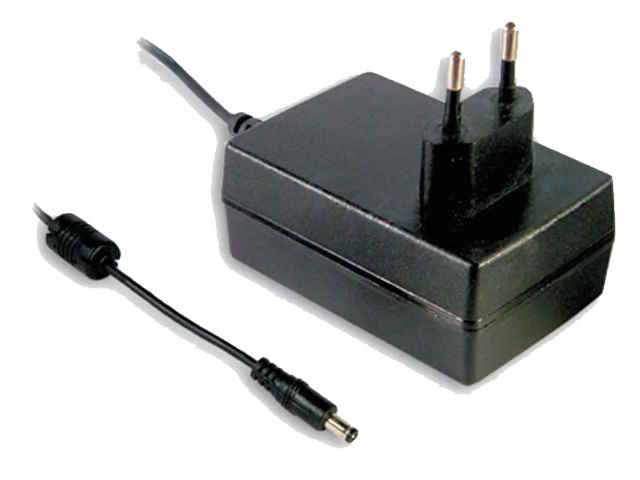

MEAN WELL GSM36E12-P1J 36 W medical-grade power supply, 12 V / 3 A

The MEAN WELL GSM36E12-P1J is a 36 W AC/DC wall-mount power supply for medical device applications. The power supply features a European 2-pin plug and a 12 VDC / 3 A output.

Technical specifications

• Manufacturer: MEAN WELL
• Product family: GSM36E
• Model: GSM36E12-P1J
• Rated power: 36 W
• Output voltage: 12 VDC
• Output current: 3 A
• Input voltage: 80–264 VAC / 113–370 VDC
• Output connector: DC jack 2.1 × 5.5 mm

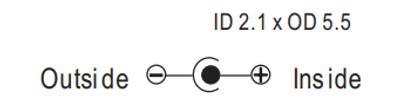

• Polarity: plus in the centre (center positive)
• AC plug: EU, 2-pin
• Construction: Class II, double insulated
• Operating temperature: -25…+60 °C
• Dimensions: 79 × 54 × 33 mm

Features

• Designed for medical device applications
• 2 × MOPP protection
• Very low leakage current
• Energy efficiency level VI
• Wide 80–264 VAC input voltage range
• Short-circuit, overload, overvoltage and overtemperature protection

Suitable for example

Medical devices and other applications that require a reliable and safety-compliant 12 VDC power supply.
