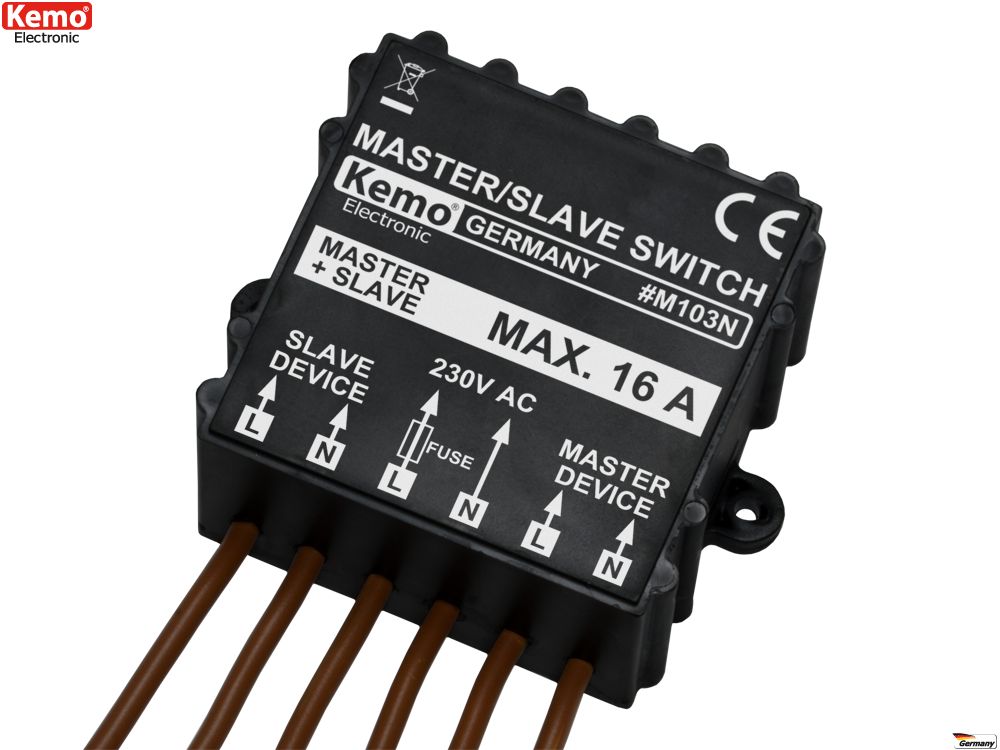

Kemo M103N - Master/slave high-power switch 230VAC (400VAC)

33,60 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The device monitors when a 1- or 3-phase (one of the three) master load is switched on and then automatically switches the slave load on. The slave can only be single-phase (or an external 3-phase contactor). Each phase max. 15 A. Total power capacity 3600 W.

Typical use: for example a table saw whose start-up activates a connected vacuum cleaner.

Technical specifications
Supply voltage	230 V/AC
Maximum current	15 A for the master, 15 A for the slave, but the combined current must not exceed 16 A!
Example	If 10 A flows through the master, you may connect a maximum 6 A load to the slave.
Activation current	Less than 40 mA
Operating temperature	-15 ºC ... 70 ºC
Switching function	Relay output 1 x ON max. 16 A
Own power consumption	<0.5 W
Dimensions	67 x 65 x 37 mm (without mounting ears)
Connections	Wire connections

Note! Connections to mains power must only be carried out by a qualified electrician.
