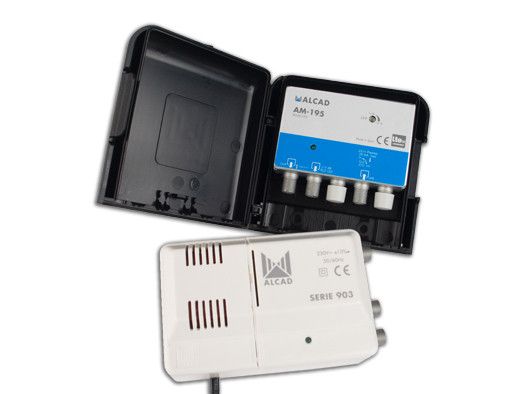

• 1 input UHF LTE700 24 V + Power supply (AL-100) Preamplifier AM-195
• Inputs 1 x UHF
• F-connectors
• 1 wideband output
• LTE (5G) Filter
• Gain UHF 32 -
• Gain adjustment UHF 16 dB
• Operating voltage 24 VDC - DC
• Pass-through UHF 24 Vdc/50 mA
• Power supply AL-100 - 24 V
• stabilized
• Short-circuit protection
• LED indicator light

Technical specifications of the mast amplifier

• Frequency range MHz UHF 470-694 (CH21-48)
• Gain dB UHF 32
• Noise figure dB UHF 3.5
• Max. output level dBµV 108
• DIN 45004B / 105 IMD3-66dB / 93 IMD2-60dB VDC 24 / mA 35
• Dimensions mm 112 x 98 x 56

Power supply technical specifications

• Outputs 2
• Frequency range MHz 40 - 862
• Split attenuation dB 4.8
• AC input / Power - 230 V~ / 50 Hz / 7W DC
• Output VDC 24 Current mA 0-100
• Dimensions mm 110 x 94 x 41
