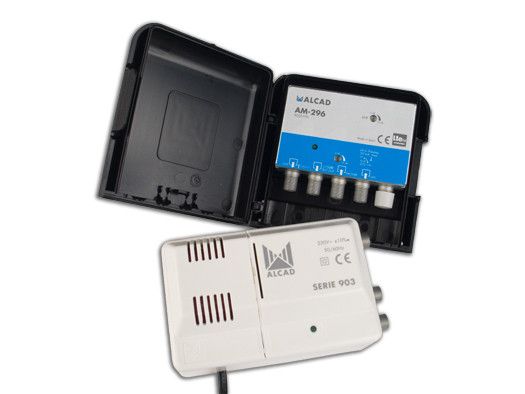

• Power supply AL-100 + Preamplifier AM-296
• Two inputs (FM/UHF) LTE700 24V
• Inputs 1 x FM / (DAB) / 1 x UHF
• F-connectors
• 1 wideband output
• LTE (5G) Filter
• Gain FM/DAB 20 dB, UHF 32
• Gain adjustment FM/DAB 20 dB
• Gain adjustment UHF 16 dB
• Operating voltage 24 VDC
• DC pass-through UHF 24Vdc/50mA Power supply AL-100 24V stabilized
• Short-circuit protection
• LED indicator

Mast amplifier technical specifications

• Frequency range MHz FM 88-108 / (DAB 160-260) / UHF 470-694 (Ch21-48) Gain dB FM 20 / UHF 32
• Noise figure dB FM 5 / UHF 3.5
• Output level dBµV 108 DIN 45004B / 105 IMD3-66dB / 93 IMD2-60dB VDC 24 / mA 35
• Dimensions mm 112 x 98 x 56

Power supply technical specifications

• Outputs 2
• Frequency range MHz 40 - 862
• Splitter attenuation dB 4.8
• AC input / Power - 230 V~ / 50 Hz / 7W
• DC output VDC 24
• Current mA 0-100
• Dimensions mm 110 x 94 x 41
