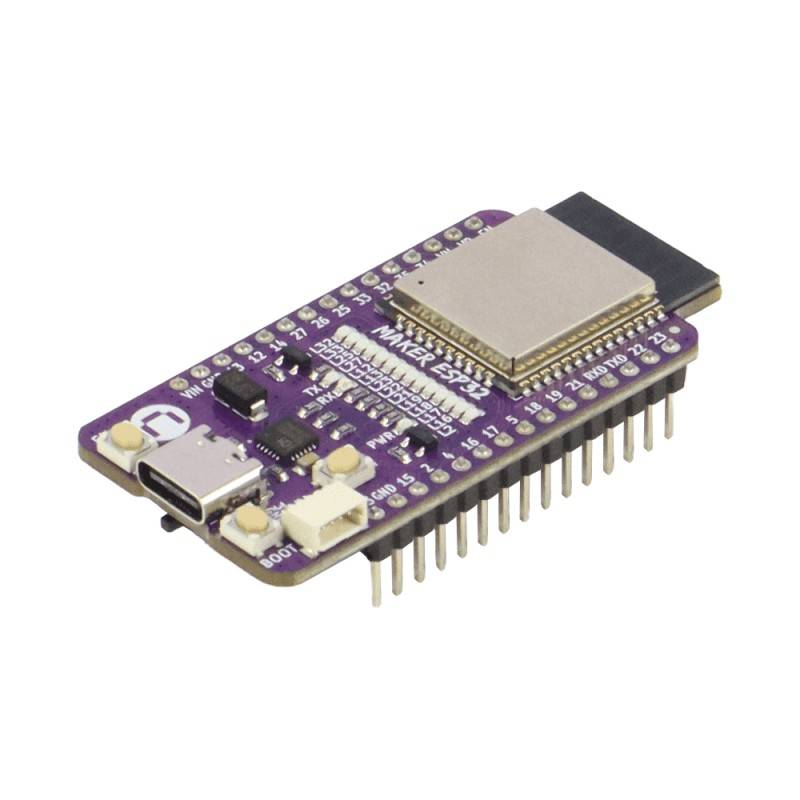

Cytron Maker ESP32 - development board with WiFi and Bluetooth connectivity
Maker ESP32 is a versatile ESP32-based development board for electronics, IoT and educational use. The board features an ESP32-WROOM-32E module, a dual-core processor up to 240 MHz, 8 Mt Flash memory and WiFi and Bluetooth connectivity.
14 GPIO diagnostic LEDs that show the state of the GPIO pins directly on the board make development and debugging easier. The board also includes a button, a piezo buzzer with a mute switch, and BOOT and RESET buttons.
The Maker Port connector enables easy connection of I²C sensors and peripherals without soldering. The 4-pin JST-SH connector is also compatible with Qwiic and STEMMA QT type I²C devices.
Features
- ESP32-WROOM-32E module
- Dual-core Xtensa LX6 processor, up to 240 MHz
- WiFi 802.11 b/g/n, 2.4 GHz
- Bluetooth 4.2 BLE
- 8 Mt Flash memory
- 520 kt SRAM
- USB-C for programming and power
- 3.3 V logic level
- 14 GPIO diagnostic LEDs
- 4-pin JST-SH Maker Port I²C connector
- Qwiic / STEMMA QT compatible Maker Port
- Programmable user button (GPIO 4)
- Piezo buzzer (GPIO 26) with mute switch
- BOOT and RESET buttons
- NodeMCU-style standard pin layout
Technical specifications
- Microcontroller module: ESP32-WROOM-32E
- Processor: Dual-core Xtensa LX6, max. 240 MHz
- Flash: 8 MB
- SRAM: 520 KB
- WiFi: 802.11 b/g/n, 2.4 GHz
- Bluetooth: Bluetooth 4.2 BLE
- Logic voltage: 3.3 V
- Input voltage USB-C / VIN: 4.6...5.5 V DC
- Voltage regulator maximum output current: 700 mA
- I/O pin maximum output current: 40 mA
- Maker Port: 4-pin JST-SH, I²C
- Dimensions: 58.0 x 28.4 mm
Suitable for example
- IoT projects
- WiFi and Bluetooth applications
- Arduino/ESP32 development
- Sensor and automation projects
- Building prototypes
- Education and STEM use
Manufacturer: Cytron Technologies
Product code: MAKER-ESP32
