M12 connector 8-pin screwable A-code
In stock 16 pcs
SKU#: 20122828
M12 connector 8-pin screwable A-code
In stock 16 pcs
SKU#: 20122828

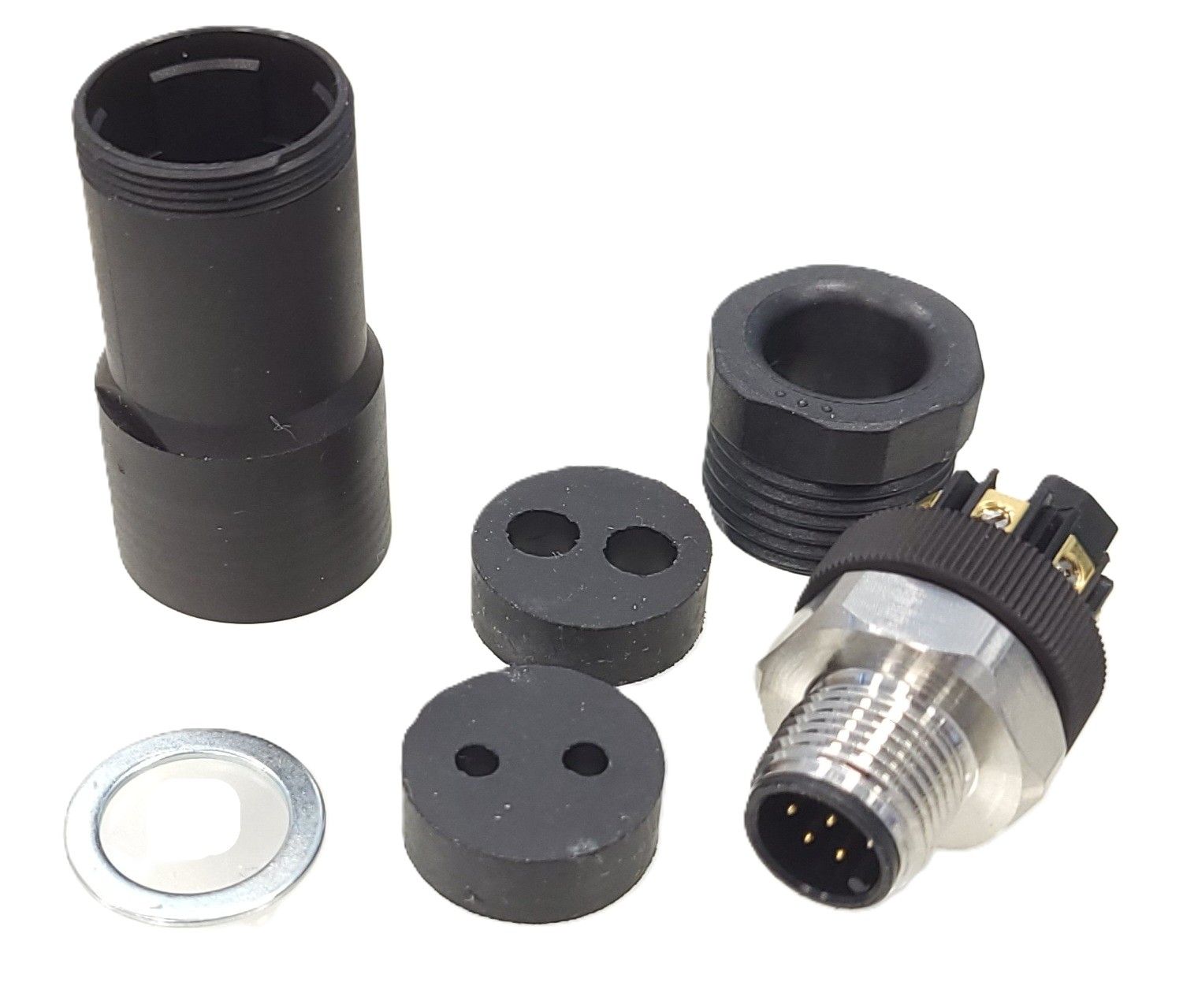

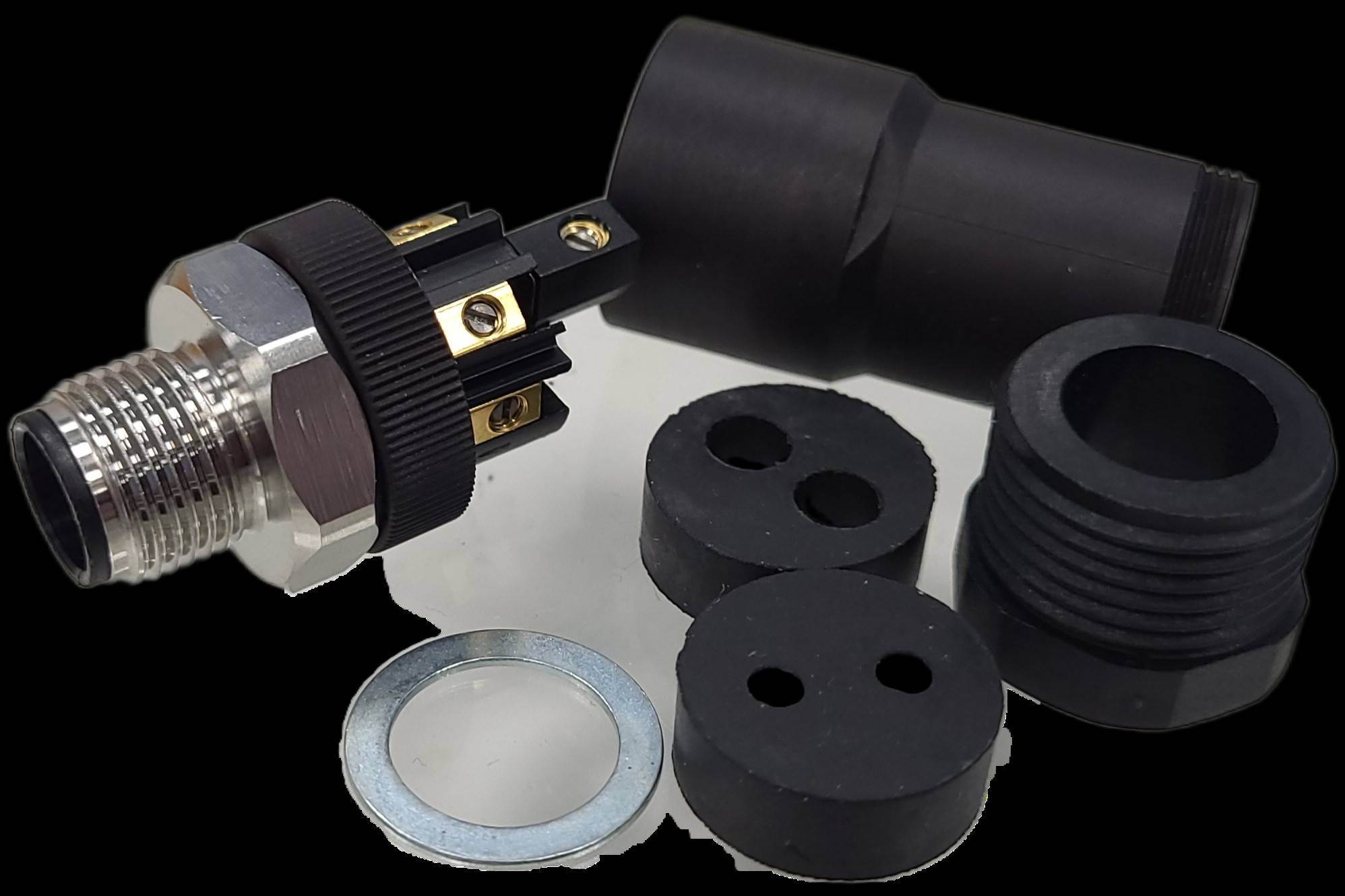

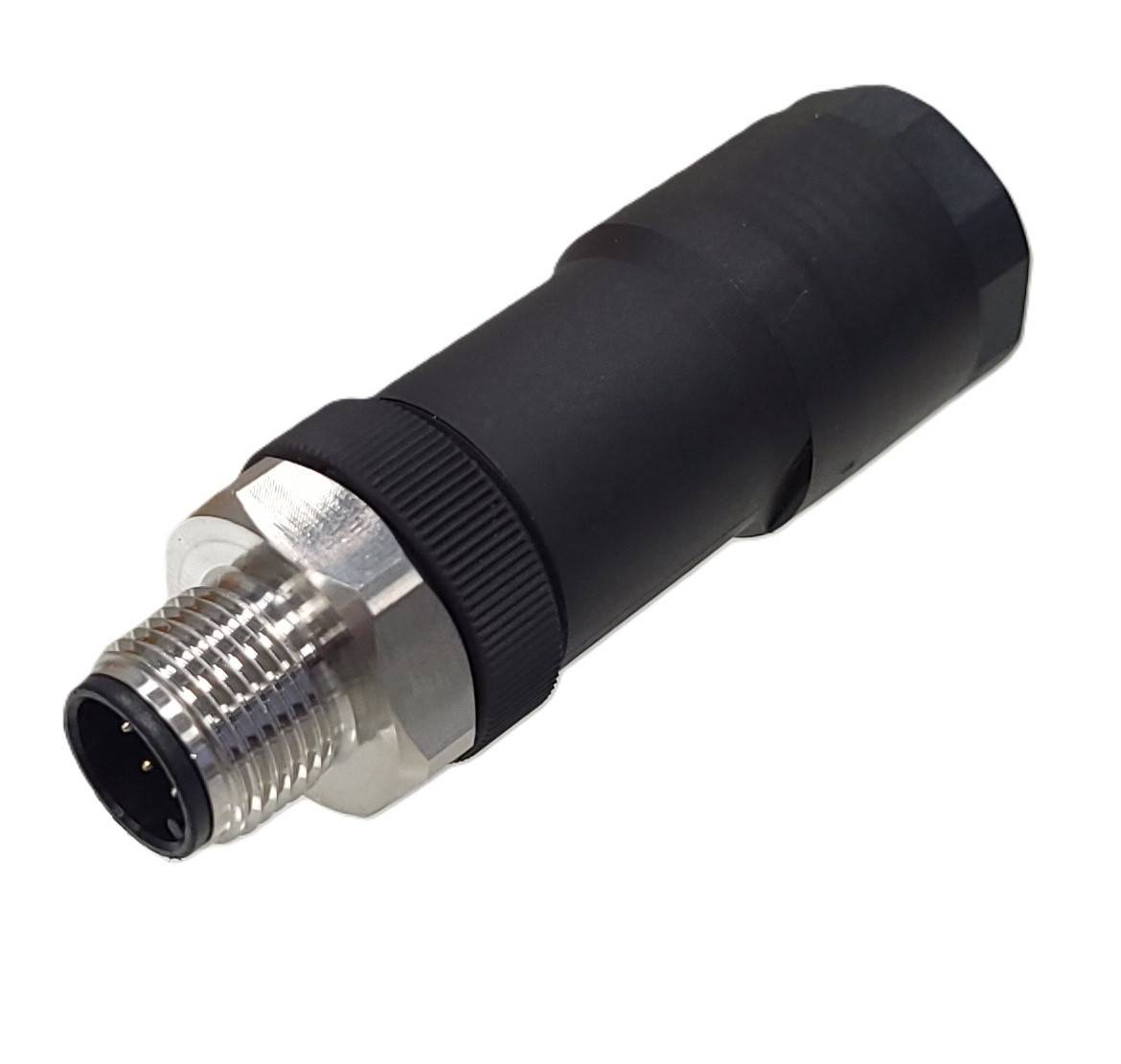

- Type: Field-mountable M12 connector, A-coded, 8-pin
- Cable entry: Double entry (two cables can be connected)
- Connection: Screw terminals
- Rated voltage: Up to 30 V AC/DC
- Rated current: 2 A per contact
- Contact resistance: ≤ 8 mΩ
- Insulation resistance: ≥ 100 MΩ
- Protection class: IP67 (when installed correctly)
- Temperature range: –40 °C – +85 °C
19,90 €
In stock
Product Description
Product Information
- Availability In stock
- Manufacturer Belden
- Product path Home ConnectorsIndustrial FittingsM8 and M12 round connectors M12 connector 8-pin screwable A-code
- SKU 20122828
- Attributes
- Operating temperature -40...+85°C
- Quantity kappalettain
- Nap lock 8
- Voltage class 30V
- Power Class 2A
- IP protection class IP67
- Connector type Johtoliitin, ruuvattava
- Manufacturer's model RSCN 8/DUO
- Customs tariff code 85369010
- Manufacturer's model RSCN 8/DUO
- Customs tariff code 85369010
