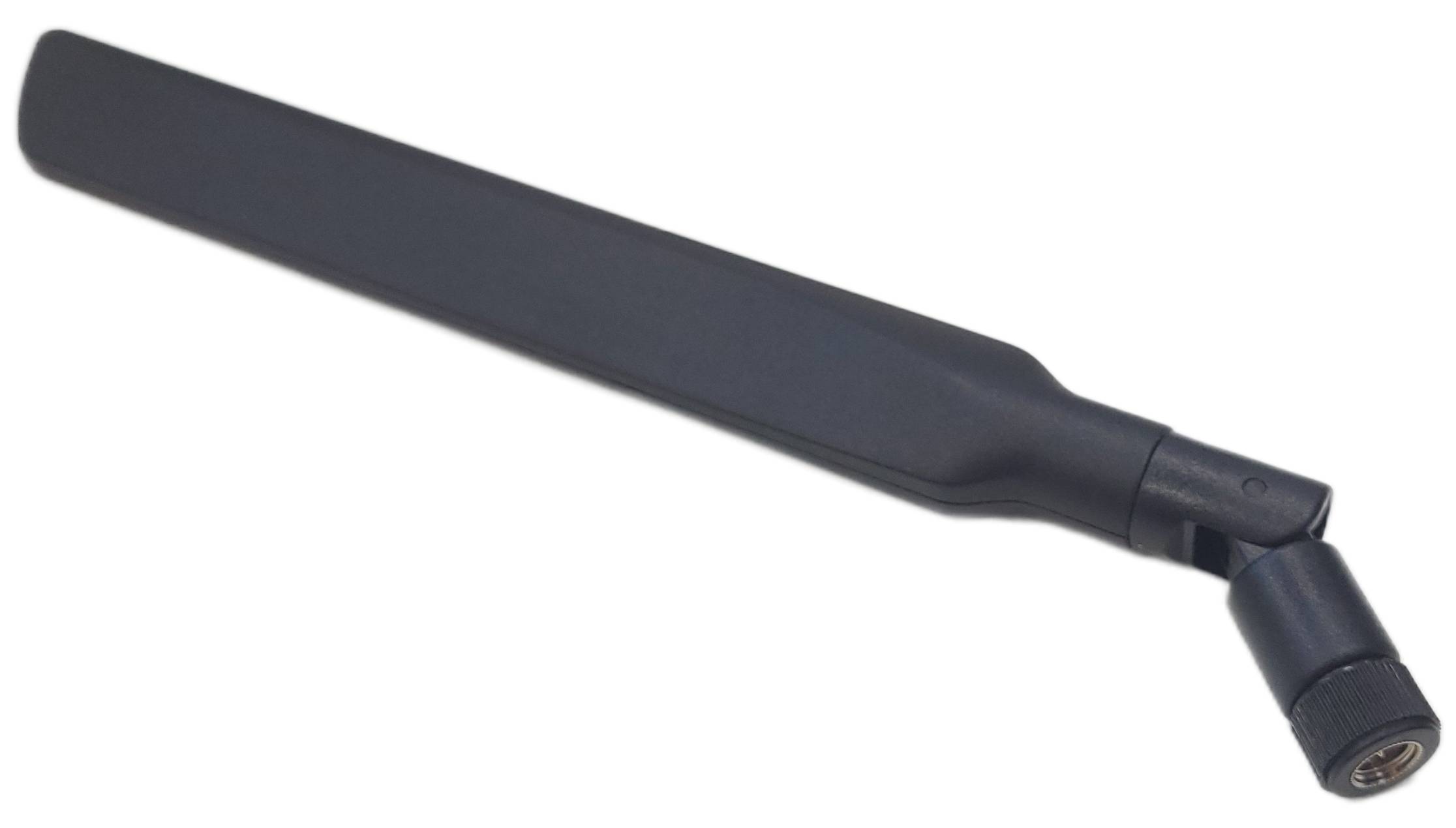

Quectel YECN009AA 5G / LTE external antenna

The Quectel YECN009AA is a wideband external dipole antenna designed for 5G, 4G, 3G and 2G applications. The antenna covers a broad 600–6000 MHz frequency range and delivers reliable performance for IoT, router and industrial applications.

Key features

• Wideband 5G antenna: 600–6000 MHz
• Compatible with 5G NR, LTE, UMTS, GSM, LPWA (LTE-M, NB-IoT)
• Omnidirectional radiation pattern
• SMA male connector (straight / swivel depending on connector model)
• Compact and rugged rubber-coated construction
• Easy mounting to terminal devices
• Suitable for use in open areas or against ground plane

Specifications

• Frequency range: 600–6000 MHz
• Antenna type: Dipole
• Radiation: Omnidirectional
• Connector: SMA male
• Dimensions: approx. 200 × 21 × 8 mm
• Efficiency: up to ~80 %
• VSWR: ≤ 3.5 (typical)
• Mounting: terminal mount (terminal mount)

Applications

• 5G / 4G routers and gateways
• Industrial IoT (IIoT)
• Remote monitoring and telemetry
• Smart metering and automation
• Vending machines and payment terminals
• Smart home / connected devices

Additional information

• RoHS and REACH compliant
• Designed to work with various ground plane sizes
• Suitable for both indoor and outdoor use (depending on installation)
