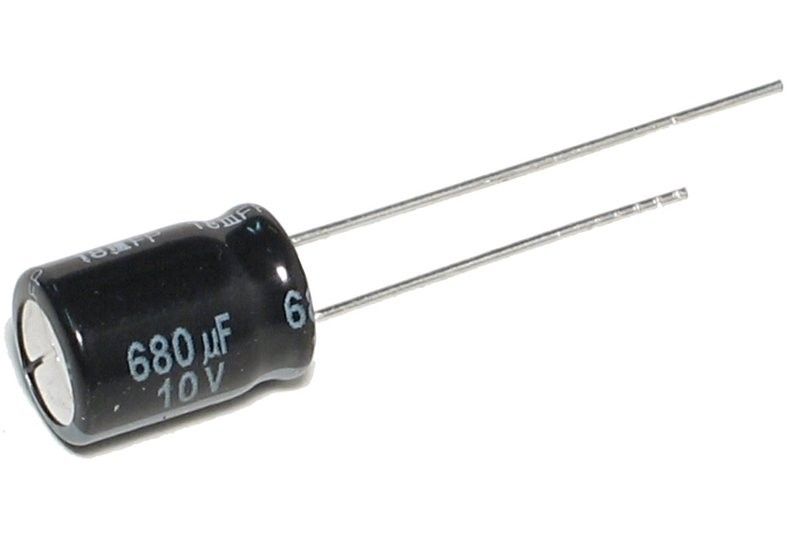

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL (RADIAL) TYPE 105°C

• reliable Panasonic's FR series
• low internal series resistance
• especially for switching applications
• bulging/leaking electrolytics in switch-mode power supplies, computers, flat-panel TVs and set-top boxes are an all-too-common fault

• capacitance: 680µF ±20%
• voltage rating: 10VDC
• operating temperature: -40...+105°C
• lifetime: 6000h @105°C
• measured can size: 8,2 x 11,8 mm
• suitable pitch: 3,5mm (= 138mils)
• leads: Ø 0,6 mm
