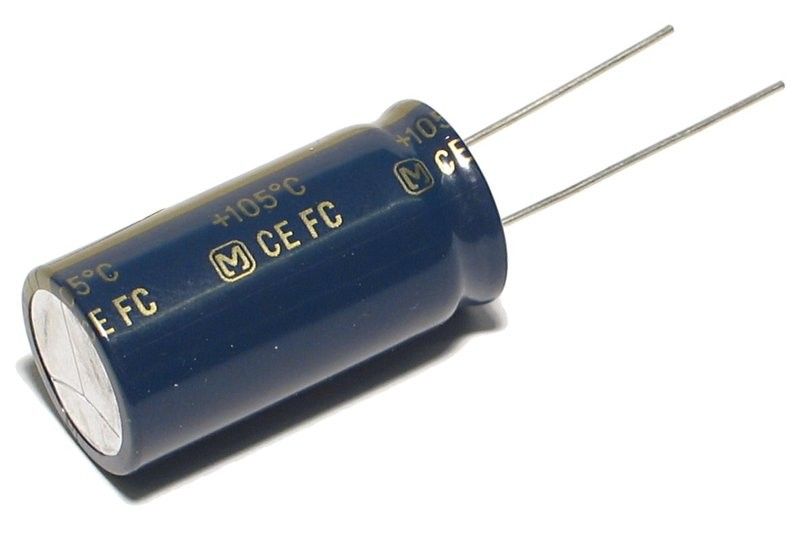

LOW ESR electrolytic capacitor vertical type 105°C

• reliable Panasonic FC series
• low internal series resistance
• especially for switch-mode applications
• popped/leaking electrolytics in switch-mode power supplies, computers, flat-panel TVs and set-top boxes are an all-too-common fault

• capacitance: 4700µF ±20%
• voltage rating: 25VDC
• operating temperature: -55...+105°C
• lifetime: 5000h @105°C
• can size: 18 x 35,5 mm
• suitable pitch: 7,5mm (= 295mils)
• leads: Ø 0,8 mm
