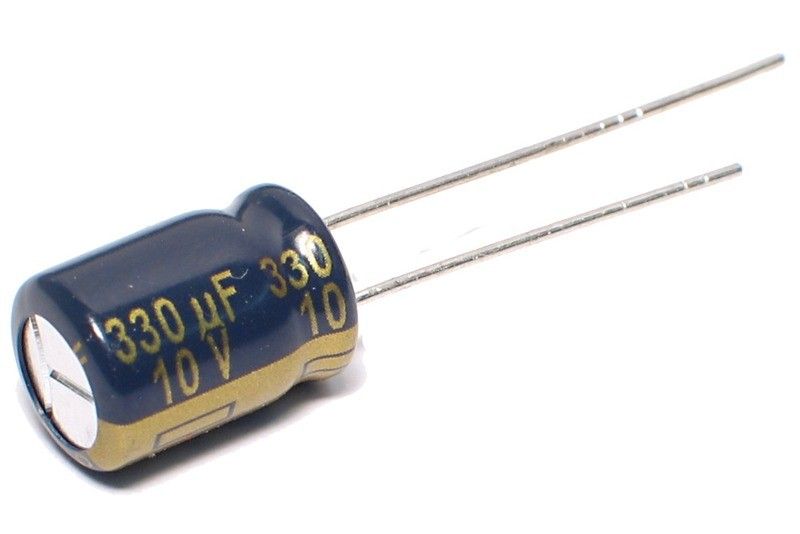

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL TYPE 105°C

• suitable pitch: 3,5mm
• reliable Panasonic FC series
• low internal series resistance
• especially for switch-mode applications
• bulging/leaking electrolytics in switching power supplies, computers, flat-panel TVs and set-top boxes are an all-too-common fault

• capacitance: 330µF ±20%
• voltage rating: 10VDC
• ESR: 117mohm
• operating temperature: -55...+105°C
• lifetime: 2000h @105°C
• measured can size: 8,0 x 12,0 mm
• suitable pitch: 3,5mm (= 137mils)
• leads: Ø 0,6 mm
