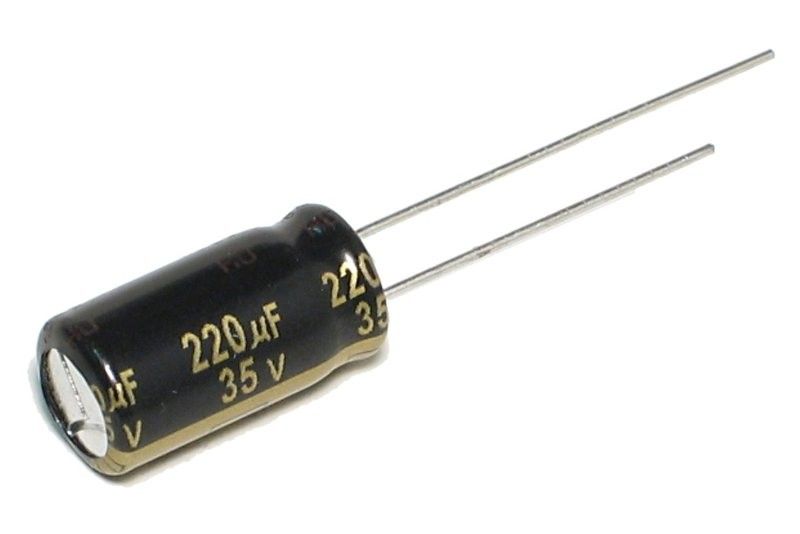

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL TYPE 105°C

• reliable Panasonic FM series
• low internal series resistance
• especially for switching applications
• bulged/leaking electrolytic capacitors in switch-mode power supplies, computers, TVs are an all-too-common fault

• capacitance: 220µF ±20%
• voltage rating: 35VDC
• ESR: 41mohm
• ripple current: 1,24A
• operating temperature: -40...+105°C
• lifespan: 3000h @105°C
• measured can size: 8,3 x 16,3 mm
• suitable pitch: 3,5mm (= 138mils)
• leads: Ø 0,5 mm
