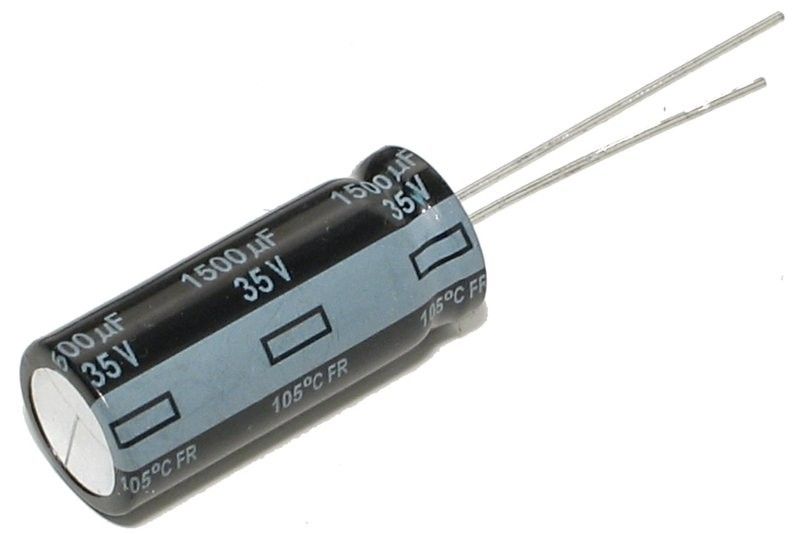

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL TYPE 105°C

• reliable Panasonic FR series
• low internal series resistance
• especially for switch-mode use
• bumped/leaking electrolytics in switch-mode power supplies, computers, flat-panel TVs and set-top boxes are a far too common fault

• capacitance: 1500µF ±20%
• voltage rating: 35VDC
• ESR: 13mohm
• ripple current: 3,63A
• operating temperature: -40...+105°C
• lifetime: 10000h @105°C
• measured can size: 12,8 x 30,2 mm
• suitable pitch: 5,0mm (= 197mils)
• leads: Ø 0,8 mm
