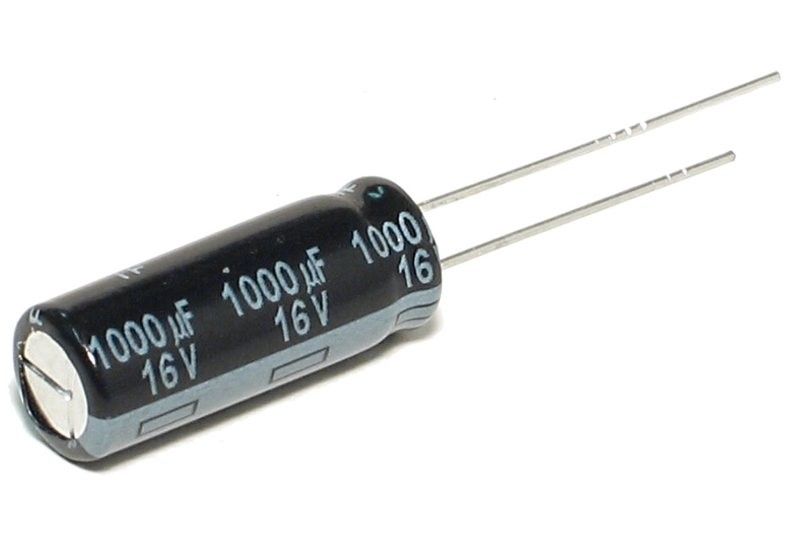

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL TYPE 105°C

• reliable Panasonic FR series
• low internal series resistance
• especially for switch-mode use
• bulging/leaking electrolytics in switch-mode power supplies, computers, flat-panel TVs and set-top boxes are far too common a fault

• capacitance: 1000µF ±20%
• voltage rating: 16VDC
• ESR: 30mohm
• ripple current: 1.56A
• operating temperature: -40...+105°C
• lifetime: 9000h @105°C
• measured can size: 8.3 x 21.7 mm
• suitable pitch: 3.5mm (= 138 mils)
• leads: Ø 0.65 mm
