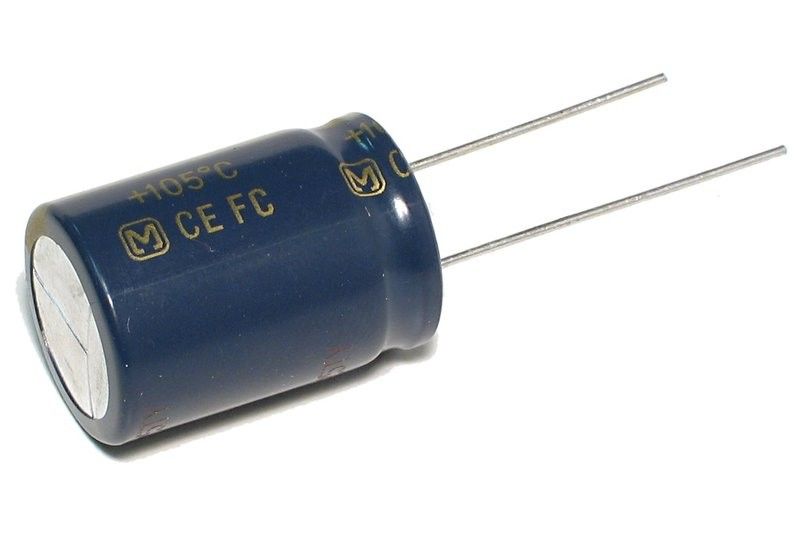

LOW ESR ELECTROLYTIC CAPACITOR VERTICAL TYPE 105°C

• reliable Panasonic FC series
• low internal series resistance
• especially for switch-mode use
• bulged/leaking electrolytics in switching power supplies, computers, flat-screen TVs and set-top boxes are an all-too-common fault

• capacitance: 10000µF ±20%
• voltage rating: 6,3VDC
• ESR: 20mohm
• operating temperature: -55...+105°C
• lifetime: 5000h @105°C
• measured can size: 18,2 x 26,5 mm
• suitable pitch: 7,5mm (= 300mils)
• leads: Ø 0,8 mm
