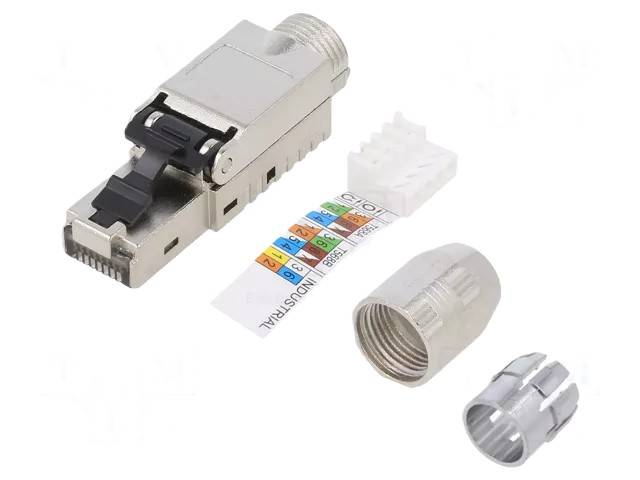

LOGILINK MP0040N Cat.6A RJ45 field-mount connector

The LOGILINK MP0040N is a field-mountable, fully shielded Cat.6A RJ45 male connector for 10 Gigabit Ethernet networks. Tool-free installation enables fast and reliable cabling without special tools. The connector supports both solid and stranded conductors and is suitable for industrial network solutions, PoE applications and MPTL cabling.

Features

• RJ45 8P8C male connector
• Cat.6A Class EA, 10 Gigabit Ethernet
• Fully shielded die-cast zinc housing
• Tool-free field installation
• Supports T568A, T568B and PROFINET terminations
• Suitable for PoE, PoE+, PoE++ and HDBaseT applications
• Usable with both solid and stranded conductors
• Round cable diameter 5.0–8.5 mm
• Gold-plated phosphor bronze contacts
• MPTL (Modular Plug Terminated Link) tested

Technical specifications

• Manufacturer: LogiLink
• Model: MP0040N
• Connector type: RJ45 male
• Category: Cat.6A
• Contacts: 8 (8P8C)
• Shielding: Yes, fully shielded
• Conductor size, solid: AWG22/1 – AWG26/1
• Conductor size, stranded: AWG23/7 – AWG27/7
• Cable diameter: 5.0–8.5 mm
• EAN: 4052792062557

Applications

The MP0040N is suitable for server rooms, industrial networks, building automation Ethernet cabling and connecting PoE devices. Thanks to its field-mountable design, the connector is also an excellent choice for maintenance and repair sites.
