LinkStar-H68K-1432 - RK3568 based router with Wi-Fi 6, 4GB RAM & 32GB eMMC, dual 2.5G & dual 1G Ethernet, 4K output, preinstalled Android 11, Lubuntu 20.04 & OpenWRT support, Home Assistant

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Seeed Studio
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual-2.5G Ethernet as 4 network interfaces overall, assembled in one portable metal box, carrying dual-band Wi-Fi 6, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

Note:

The current Android and Lubuntu 20.04 firmware does not support the MT7921 WIFI module.
This product does not come with a power supply, please get it with an DC POWER SUPPLY 12V 1,6A 19W if needed.

Feature

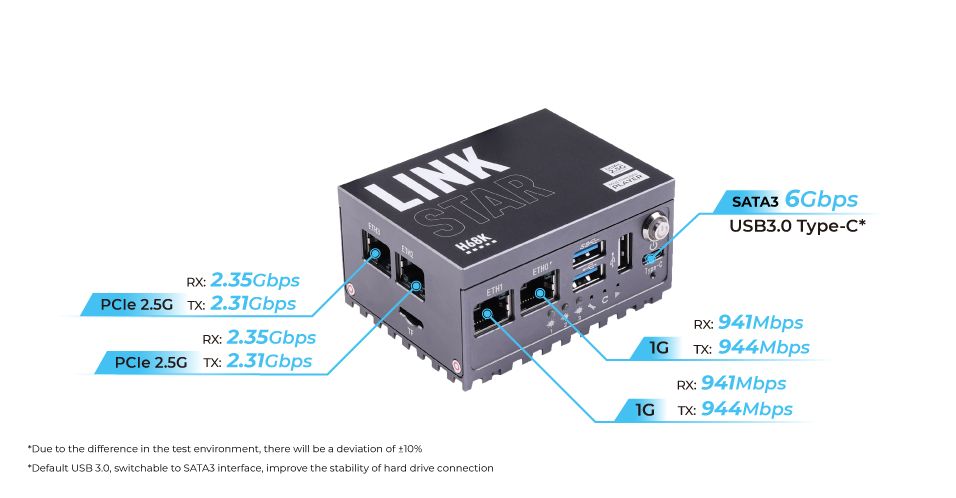

Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gbps Ethernet, 4 interfaces overall for fast speed router deployment
Outstanding Wi-Fi 6 Technology: Up to 1200Mbps, support 2.4G/5G dual-band for high throughput performance
4K Multimedia Player: Pre-installed Android 11 OS, mounted with one HDMI 2.0 port for 4K@60fps display with HDR support
High Storage Capacity: Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, along with one USB 3.0 and two USB 2.0 Type-A ports
Multiple Operating Systems Supported: Android, Lubuntu 20.04, OpenWRT,Armbian
Pocket-sized Metal Box: Carry everywhere, built around with metal for passive heat dissipation

Application

VPN router
NAS
Remote control/work
Game Server
Block advertising
Print server
Firewall
Tethering

Specification

Processor	Rockchip RK3568 for up to 2.0GHz
CPU	Quad-core 64-bit Cortex-A55
GPU	ARM G52 2EE
NPU	1 TOPS@INT8
Multi-Media	4K@60fps H.265/H.264/VP9 video decoder 1080@60fps H.265/H.264 video encoder
Multi-Media	Support 8M ISP, HDR
Storage	onboard 32GB eMMC
Storage	1x SD card slot for storage expansion
Operating System	Pre-installed Android 11 OS
Operating System	Support Lubuntu 20.04, Armbian, Android, Openwrt, Buildroot
Wireless	Dual-band 2.4G/5G Wi-Fi 6
Wireless	M7921E module
NIC	2x 1G Ethernet NIC RTL8211F
NIC	2x 2.5G Ethernet NIC RTL8125B
Video Output	1x HDMI2.0 interface for 4K output
Audio	1x 3.5mm four-piece headphones for both input and output
USB	1x USB 3.0 Type-A
	1x USB 3.0 Type-C, capable of storage expansion and 5V power supply
	2x USB 2.0 Type-A
Power Supply	operating voltage: 5V~24V DC(12V-1A DC recommended)
	recommend: 12V-1A DC
	recommend(with additional hardware driver): 12-2A DC
	recommend(with Type-C connector): under 5V
Power Consumption	7.5W（With a fully loaded network port）
Operating temperature	-10 ~ 55°C
Dimensions	806040mm

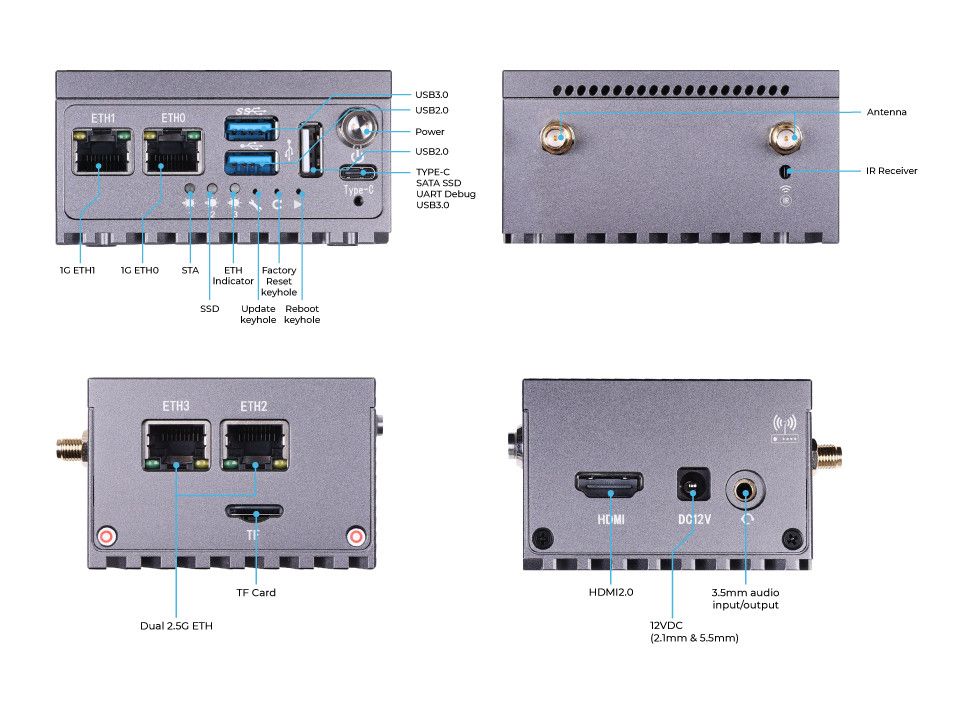

Hardware Overview

[img-26953-left-desc_default]

Part List

1 x LinkStar-H68K-1432
2 x Antenna
