LinkStar-H68K-0232 ROUTER 2/32GB

Name: LinkStar-H68K-0232 ROUTER 2/32GB
Brand: Seeed Studio
SKU: SEEED-102110775
Price: 59.51 EUR
Availability: OutOfStock

Temporarily out of stock

SKU#: SEEED-102110775

Outlet

LinkStar-H68K-0232 ROUTER 2/32GB

Temporarily out of stock

SKU#: SEEED-102110775

Seeed Studio 102110775 - LinkStar-H68K-0232 - RK3568-based router, with 2GB RAM & 32GB eMMC, dual-2.5G & dual-1G Ethernet, 4K output, preinstalled Android 11, Lubuntu 20.04 & OpenWRT support, Home Assistant.

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Seeed Studio
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

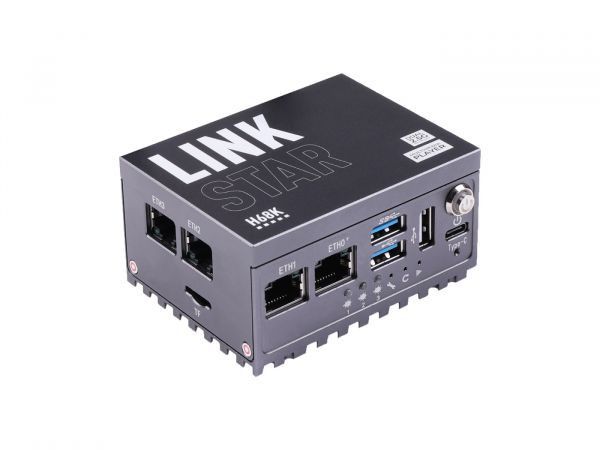

LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual-2.5G Ethernet as 4 network interfaces overall, assembled in one portable metal box, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

Note:

The current Android and Lubuntu 20.04 firmware does not support the MT7921 WIFI module.
This product does not come with a power supply, please get it with an DC POWER SUPPLY 12V 1,6A 19W if needed.

Feature

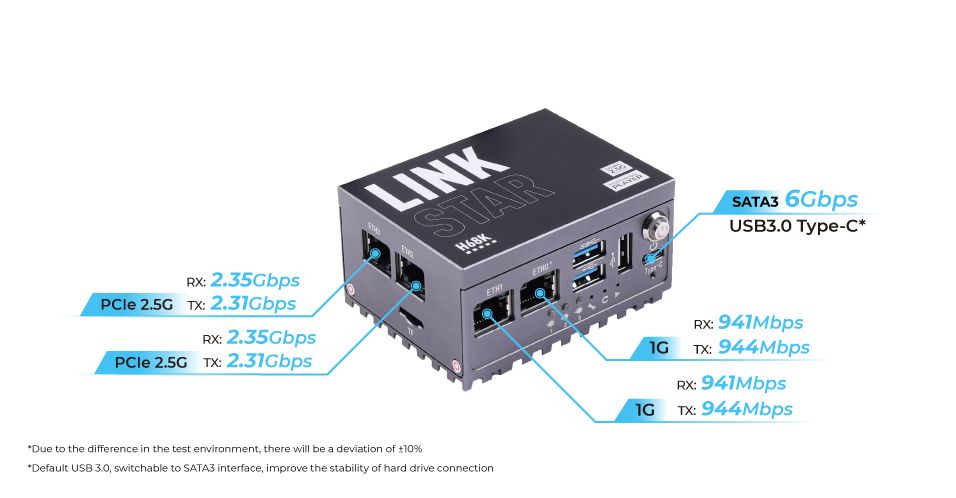

Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gbps Ethernet, 4 interfaces overall for fast speed router deployment
4K Multimedia Player: Pre-installed Android 11 OS, mounted with one HDMI 2.0 port for 4K@60fps display with HDR support
High Storage Capacity: Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, along with one USB 3.0 and two USB 2.0 Type-A ports
Multiple Operating Systems Supported: Android, Lubuntu 20.04, OpenWRT,Armbian
Pocket-sized Metal Box: Carry everywhere, built around with metal for passive heat dissipation

Application

VPN router
NAS
Remote control/work
Game Server
Block advertising
Print server
Firewall
Tethering

Specification

Processor	Rockchip RK3568 for up to 2.0GHz
CPU	Quad-core 64-bit Cortex-A55
GPU	ARM G52 2EE
NPU	1 TOPS@INT8
Multi-Media	4K@60fps H.265/H.264/VP9 video decoder 1080@60fps H.265/H.264 video encoder
Multi-Media	Support 8M ISP, HDR
Storage	onabord 32GB eMMC
	1x SD card slot for storage expansion
	1x PCIe2.0 for Wi-Fi or M.2 extension
Operating System	Pre-installed Android 11 OS
Operating System	Support Lubuntu 20.04, Armbian, Android, Openwrt, Buildroot
NIC	2x 1G Ethernet NIC RTL8211F
NIC	2x 2.5G Ethernet NIC RTL8125B
Video Output	1x HDMI2.0 interface for 4K output
Audio	1x 3.5mm four-piece headphones for both input and output
USB	1x USB 3.0 Type-A
	1x USB 3.0 Type-C, capable of storage expansion and 5V power supply
	2x USB 2.0 Type-A
Power Supply	operating voltage: 5V~24V DC(12V-1A DC recommended)
	recommend: 12V-1A DC
	recommend(with additional hardware driver): 12-2A DC
	recommend(with Type-C connector): under 5V
Power Consumption	6W（With a fully loaded network port）
Operating temperature	-10 ~ 55°C
Dimensions	806040mm

Hardware Overview

[img-26948-left-desc_default]

Part List

1 x LinkStar-H68K-0232

Product Information

Availability Temporarily out of stock
Manufacturer Seeed Studio
Product path Home telecommunications Wireless Networks Mobile Routers LinkStar-H68K-0232 ROUTER 2/32GB
SKU SEEED-102110775
Attributes
- Operating temperature -10...+55°C
- Processor ARM Cortex-A55 (RK 3568)
- Manufacturer's model 102110775
- Click for more details https://www.seeedstudio.com/LinkStar-H68K-0232-p-5499.html
- Dimensions 80 x 60 x 40mm
