LED DRIVER 150W CV 12VDC 12,5A

Temporarily out of stock

SKU#: XLG-150-12-A

LED DRIVER 150W CV 12VDC 12,5A

LED DRIVER 150W CV 12VDC 12,5A

Temporarily out of stock

SKU#: XLG-150-12-A

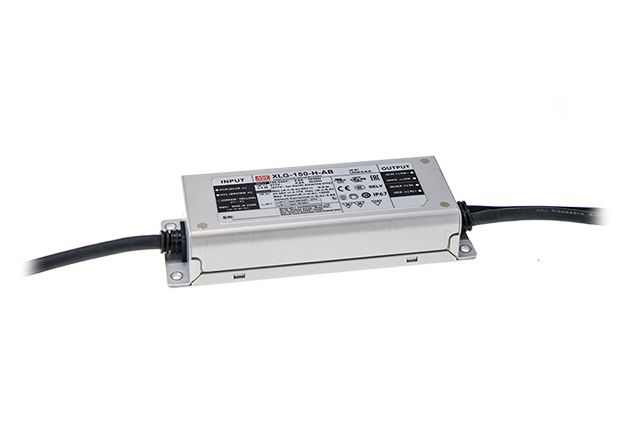

Mean Well XLG-150-12-A - Constant-voltage LED power supply for indoor and outdoor installations.

57,81 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Input voltage 100-240VAC 1A 50Hz
Cold start 50A (twidth=500μs measured at 50% Ipeak) 230VAC
Output voltage 12V 12,5A 150W
Ingress protection rating IP67
Cable connection
Operating temperature -40....+90C measured from the Tcase point (see datasheet measurement figure)
Metal enclosure

Product Information

Availability Temporarily out of stock in the online store
Manufacturer MeanWell
Product path Home Power Supplies LED power supplies and controllers LED DRIVER 150W CV 12VDC 12,5A
SKU XLG-150-12-A
Attributes
- Voltage class 12V
- Power Class 12A
- IP protection class IP67
- Weight 800g
- Manufacturer's model XLG-150-12-A
- Dimensions 180 x 63 x 35.5 mm
- Extended warranty 5 years
