Langer E1 is an EMC development kit for investigating EMI disturbances on circuit boards and for developing immunity to disturbances. The kit can quickly locate the causes of burst and ESD disturbances and evaluate the effects of measures taken to eliminate the disturbances.

The E1 is suitable for use in development-phase measurements. The compact test setup can be placed on a workbench, and the SGZ 21 generator included in the kit enables the generation of burst and ESD disturbances. The S21 optical sensor allows electrically isolated measurements up to a transmission speed of 10 Mbps.

The E1 series user manual contains information on EMC disturbance mechanisms as well as detailed descriptions of basic measurement methods suitable for investigating circuit board immunity and locating disturbance sources.

Technical specifications

• S21-optical sensor: S21 Optical Sensor (10 Mbps)
• Transmission range: DC–10 Mbps
• Optical fiber connector: Ø 2.2 mm
• Supply voltage: 3–5 V
• Current consumption: 10 mA
• SGZ 21 Burst Generator: burst disturbance generator
• Rise time: approximately 2 ns
• Fall time: approximately 10 ns
• Peak value: approximately 0–1500 V
• Optical input: yes
• Optical fiber: 2.2 mm
• Maximum frequency: 5 MHz
• Minimum pulse width: 100 ns
• SGZ 21 supply: 12 V / 200 mA
• Dimensions of the set (W × L × H): 154 × 100 × 62 mm

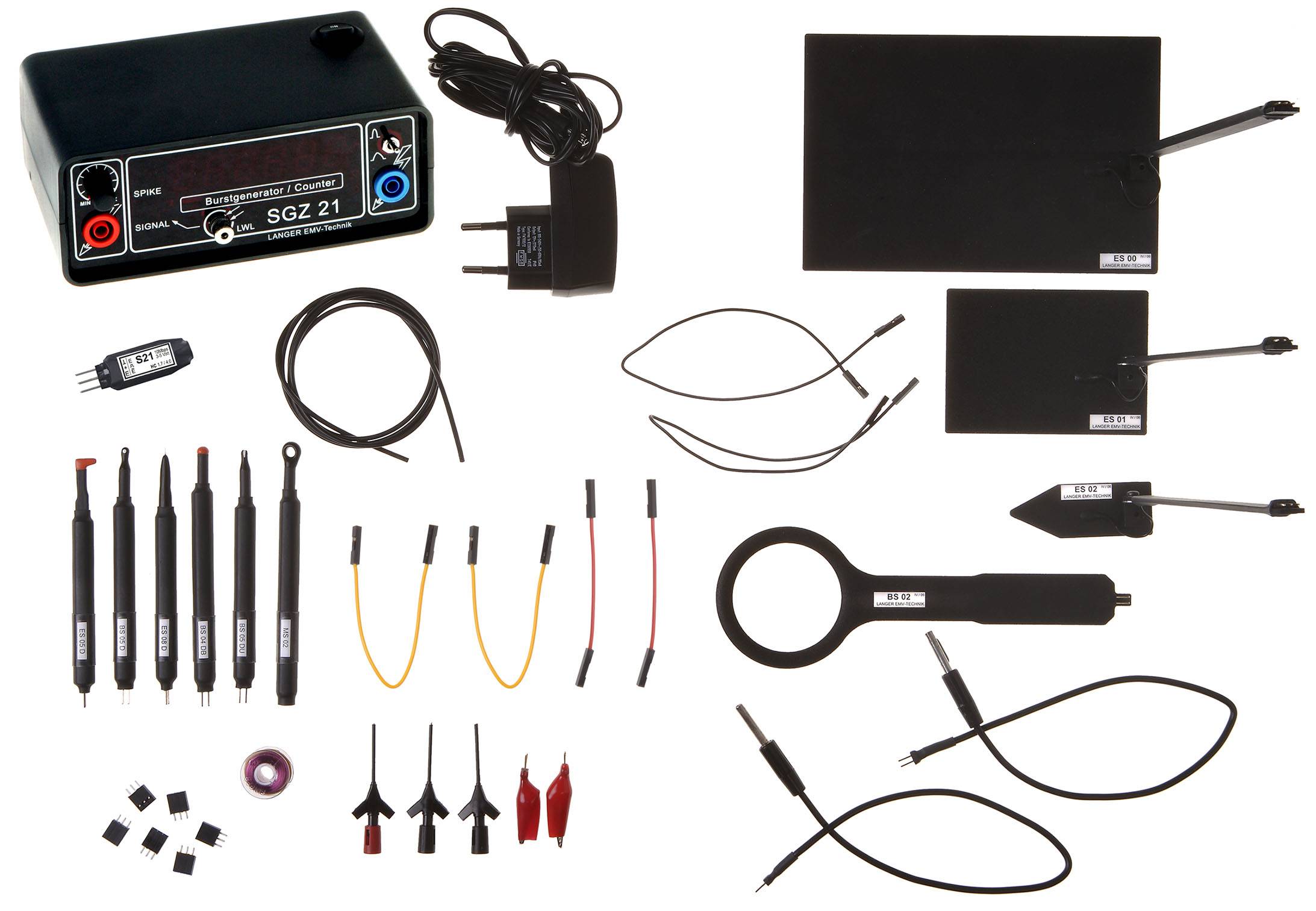

Package includes

• 1 × SGZ 21, Burst Generator
• 1 × S21, Optical Sensor (10 Mbps)
• 1 × BS 02, Magnetic Field Source
• 1 × BS 04DB, Magnetic Field Source
• 1 × BS 05D, Magnetic Field Source
• 1 × BS 05DU, Magnetic Field Source
• 1 × ES 00, E-Field Source
• 1 × ES 01, E-Field Source
• 1 × ES 02, E-Field Source
• 1 × ES 05D, E-Field Source
• 1 × ES 08D, E-Field Source
• 1 × MS 02, Magnetic Field Probe
• 1 × E1 acc, Accessories
• 1 × NT FRI EU, Power Supply Unit

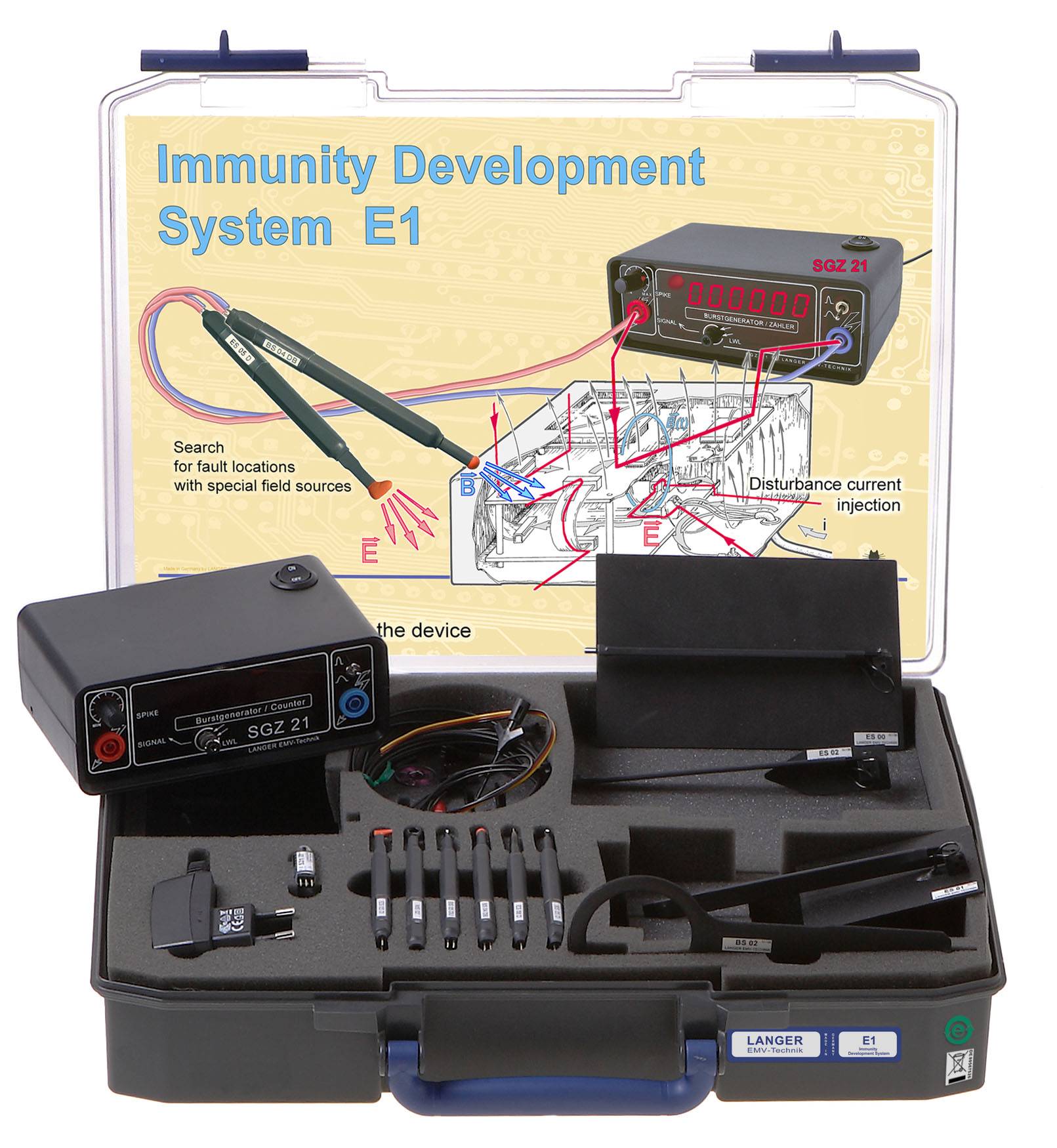

• 1 × E1 case, System Case
• 1 × E1 m, E1 Set User Manual
