Kyoritsu AC CLAMP METER 3000A/150mm

Name: Kyoritsu AC CLAMP METER 3000A/150mm
Brand: Kyoritsu (Kewtech)
SKU: KEW-2210R
Price: 290.85 EUR
Availability: InStock

Temporarily out of stock

SKU#: KEW-2210R

Temporarily out of stock

SKU#: KEW-2210R

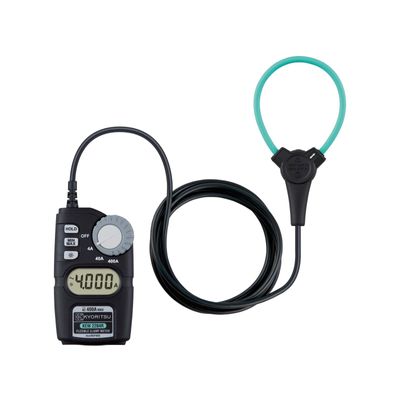

Kyoritsu KEW 2210R - digital TRMS clamp meter with flexible measuring loop Ø 150mm, AC 3000 A

290,85 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Product Description

AC A (RMS)
	Range	30.00/300.0/3000A
	Accuracy	±3%rdg±5dgt[45-500Hz] (At the center of the circle formed by the flexible sensor)
	Crest factor (CF)	Full scale CF<1.6, half scale<3.2 Effective input crest values are √2 times of the max values of each range.
Conductor size	φ150mm max.
Influence of Conductor position	Additional ±3% (max.) depending on the distance from the center position
Overload protection	5000A AC for 10 seconds
Applicable standards	IEC 61010-1, IEC 61010-2-032 CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2 IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature & humidity	0 - +50℃,less than 80% RH (without condensation)
Storage temperature & humidity	-10 - +60℃,less than 70% RH (without condensation)
Power source	R03 / LR03(AAA)(1.5V)×2 ※Continuous measuring time：approx.120hours (Auto power off：approx.15 minutes)
Dimensions	120(L)×70(W)×26(D)：Display unit φ8.5mm approx.：Cable diameter 1.8m approx.：Cable length
Weight	300g approx. (including batteries)
Included Accessories	9174 (Carrying case) LR03(AAA)×2, Insruction manual

Availability Made to order, delivery time usually 7-14 days
Manufacturer Kyoritsu (Kewtech)
Product path Home Measuring Instruments Electrical Measurements Clamp Meters Kyoritsu AC CLAMP METER 3000A/150mm
SKU KEW-2210R
Attributes
- Weight 300g
- Manufacturer's model KEW 2210R
- Click for more details https://www.kew-ltd.co.jp/en/products/detail/00162/
- Dimensions 120 x 70 x 26 mm (display unit)
- Delivery time 6-12 weeks
