Kyoritsu 8161 AC 100A CLAMP ADAPTER

Name: Kyoritsu 8161 AC 100A CLAMP ADAPTER
Brand: Kyoritsu (Kewtech)
SKU: KEW-8161
Price: 98.99 EUR
Availability: InStock

In stock under 5 pcs

SKU#: KEW-8161

Kyoritsu 8161 AC 100A CLAMP ADAPTER

In stock under 5 pcs

SKU#: KEW-8161

Kyoritsu KEW 8161 - 100A AC clamp current adapter suitable for 24 mm conductor thickness. Connects, for example, to a multimeter for voltage measurement.

98,99 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

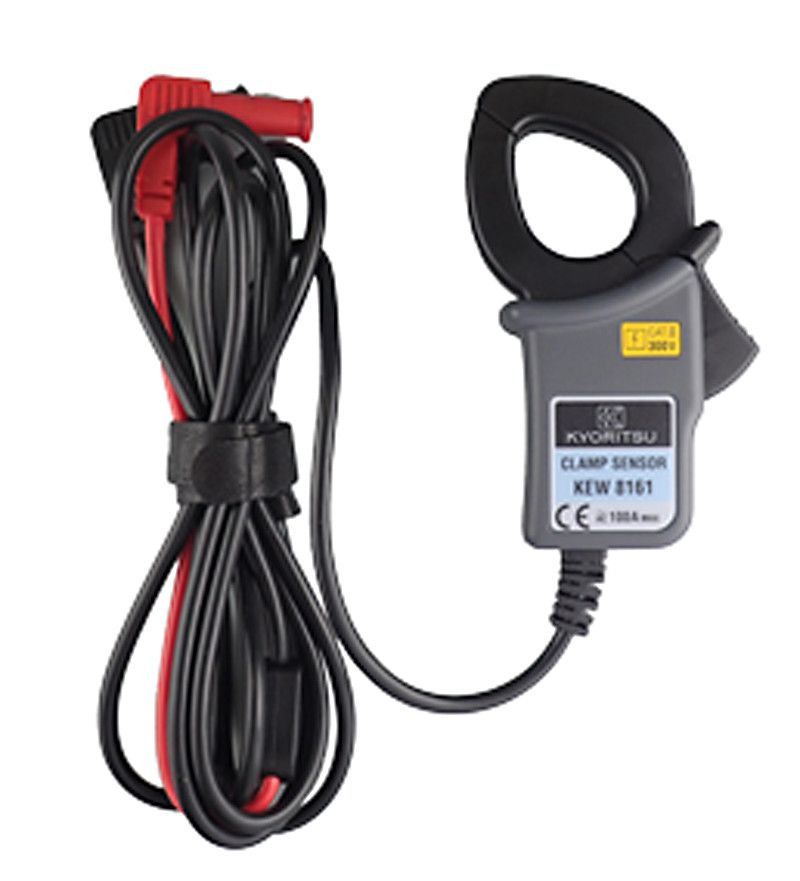

KEW 8161 clamp Sensor is designed to be an AC current/voltage conversion probe capable of measuring AC current up to 100A in conjunction with digital multimeter

Specifications

Conductor size	Ø24
Rated current	AC 100A
Output voltage	AC 1000mV / VC 100A (AC 10mV/A)
Accuracy	±2.0%rdg±3.0mV (45Hz - 65Hz) ±2.5%rdg±3.0mV (65Hz - 1kHz)
Cable length	Approx. 1.2m
Output connector	Ø4mm banana plug
Output impedance	Approx. 22Ω
Applicable standards	IEC 61010-1 CAT III 300V pollution degree 2, IEC 61010-2-032
Operating temperature & humidity range	-10 to 50°C, less than 85% RH (without condensation)
Dimensions	97(L) × 59(W) × 26(D) mm
Weight	Approx. 120g
Included Accessories	Instruction manual

Product Information

Availability In stock
Manufacturer Kyoritsu (Kewtech)
Product path Home Measuring Instruments Electrical Measurements Clamp Meters Kyoritsu 8161 AC 100A CLAMP ADAPTER
SKU KEW-8161
Attributes
- Weight 120g
- Manufacturer's model KEW 8161
- Click for more details https://www.kew-ltd.co.jp/en/products/detail/00405/
- Dimensions 97 x 59 x 26 mm
