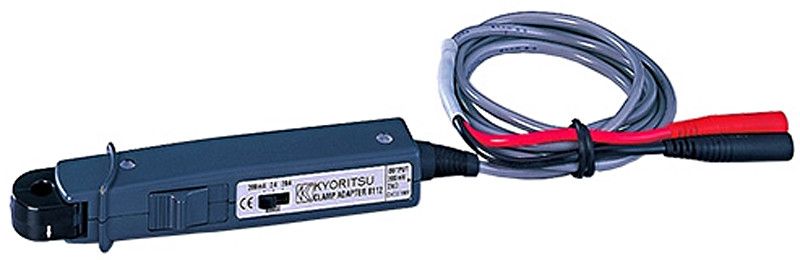

Kyoritsu 8112 AC 120A CLAMP ADAPTER

Name: Kyoritsu 8112 AC 120A CLAMP ADAPTER
Brand: Kyoritsu (Kewtech)
SKU: KEW-8112
Price: 282.38 EUR
Availability: InStock

Temporarily out of stock

SKU#: KEW-8112

Kyoritsu 8112 AC 120A CLAMP ADAPTER

Temporarily out of stock

SKU#: KEW-8112

Kyoritsu Model 8112 - highly sensitive 120A AC clamp current adapter suitable for 8mm conductor diameter. Connects, for example, to a multimeter for voltage measurements.

282,38 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

AC CLAMP ADAPTOR
Model 8112 clamp adaptor is designed to be an AC current/voltage conversion probe capable of measuring AC current from 0.1mA to 120A in conjunction with digital multimeters.
Simple to operate, the unit has range switch position at 200mA, 2A and 20A. It also features safety design throughout with no exposed metal parts.

Specifications

Range	Measuring Ranges	Output Voltage	Accuracy	Frequency Response
200mA	AC 0 - 500mA	AC1V/A (1000mA→1V)	±1.5%rdg±0.2mA	50Hz - 1kHz
	AC 0 - 1000mA		±3%rdg±0.4mA	40Hz - 10kHz
2A	AC 0 - 20A	AC100mV/A (20A→2V)	±1%rdg±1mA	40Hz - 1kHz
			±1.5%rdg±2mA	1k - 10kHz
20A	AC 0 - 20A	AC10mV/A (120A→1.2V)	±1%rdg±0.01A	40Hz - 1kHz
	AC 20 - 60A		±2.5%rdg	50Hz - 10kHz
	AC 60 - 120A		±2.5%rdg	100Hz - 10kHz
Conductor Size		Ø8mm max.
Frequency Characteristics		30Hz - 100kHz (-3dB)
Safety Standard		IEC 61010-1 CAT II 100V Pollution Degree 2
Withstand Voltage		500V AC for 1 minute
Dimensions		153(L) × 18(W) × 23(D)mm
Weight		100g approx.
Accessories		9095 (Carrying Case) Instruction Manual

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Kyoritsu (Kewtech)
Product path Home Measuring Instruments Electrical Measurements Clamp Meters Kyoritsu 8112 AC 120A CLAMP ADAPTER
SKU KEW-8112
Attributes
- Weight 100g
- Manufacturer's model MODEL 8112
- Click for more details https://www.kew-ltd.co.jp/en/products/detail/00050/
- Dimensions 153 x 18 x 23mm
- Delivery time 6-12 weeks
