ATT function does not trip residual-current devices
Testing of all RCD types individually and automatically, ramp and switching voltage measurement
Earth resistance measurement: 2- and 3-point measurement
Insulation resistance measurement: 100, 250, 500 and 1000 V
Polarization index PI and DAR measurements
Continuity measurement: selectable 200 mA or 15 mA
3-phase sequence measurement
Voltage: 2-6 V TRMS and 500 V main voltage
HELP screen assistant function. Guides the correct wiring
SPD: protected function for varistors
PAT: appliance tester function, insulation resistance measurement and continuity
IEC 61010-1 CAT IV 300 V, CAT III 600 V. IEC 61557-1,2,3,4,5,6,7,10
Delivery
The delivery includes all test leads required for all basic measurements performed with the device.
The delivery does not include software or a data transfer cable (because Bluetooth). The Android app can be downloaded from the app store under the name KEW Smart. The Kew Report PC software can be downloaded from the manufacturer's website.

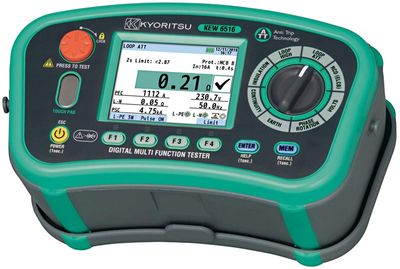

Kyoritsu KEW 6516 with Finnish functions
Main test lead※2 (mains test leads)
7281(Test leads with remote control switch, test leads with remote switch)
7246(Distribution board test lead, busbar test leads)
7228A(Earth resistance test leads, to protect test leads)
