KNX LED DRIVER 60W CC 500-1400mA 2-90V

In stock under 5 pcs

SKU#: LCM-60KN

KNX LED DRIVER 60W CC 500-1400mA 2-90V

KNX LED DRIVER 60W CC 500-1400mA 2-90V

In stock under 5 pcs

SKU#: LCM-60KN

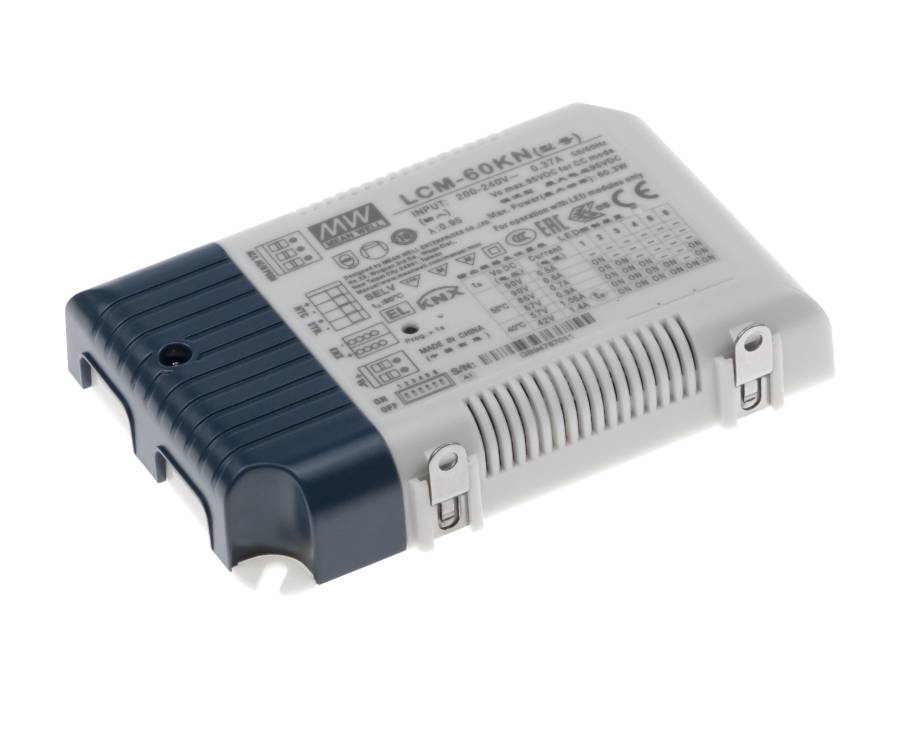

Mean Well LCM-60KN - Constant-current KNX LED driver for indoor installations. Current limit selectable with DIP switches.

57,99 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

input voltage 180-295VAC 0,32A 50Hz
cold start 20A (twidth=320μs measured at 50% Ipeak) 230VAC
outputs: 500mA/2-90V, 600mA/2-90V, 700mA/2-86V (factory setting), 900mA/2-67V, 1050mA/2-57V, 1400mA/2-42V
output power: max. 60W depending on set current limit
connects directly to the KNX line
integrated "button dimming" feature
max. 10 units can be synchronized
operating temperature -30....+90C (see datasheet for details)
plastic enclosure

Product Information

Availability In stock
Manufacturer MeanWell
Product path Home Power Supplies LED power supplies and controllers KNX LED DRIVER 60W CC 500-1400mA 2-90V
SKU LCM-60KN
Attributes
- Power class 50W
- Weight 240g
- Manufacturer's model LCM-60KN
- Dimensions 123.5 x 81.5 x 23mm
- Approvals KNX
- Extended warranty 3 years
- Approvals KNX
