KNX LED DRIVER 40W CC 350mA-1050mA 2-100V

In stock under 5 pcs

SKU#: LCM-40KN

KNX LED DRIVER 40W CC 350mA-1050mA 2-100V

KNX LED DRIVER 40W CC 350mA-1050mA 2-100V

In stock under 5 pcs

SKU#: LCM-40KN

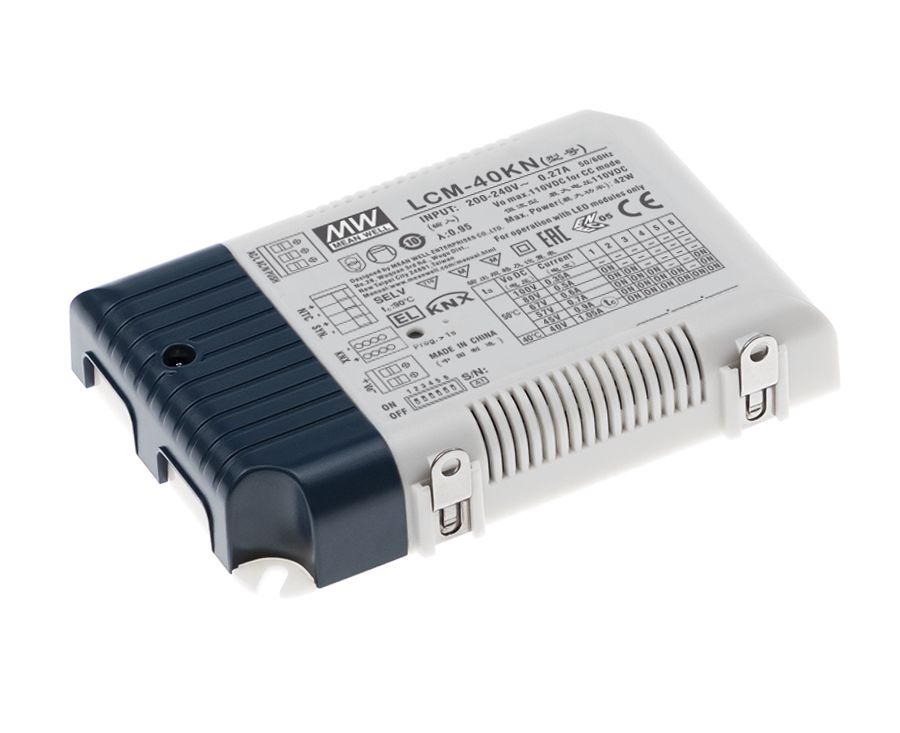

Mean Well LCM-40KN - Constant-current KNX LED driver for indoor installations. Current limit selectable via DIP switches.

58,06 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

input voltage 180-295VAC 0.23A 50Hz
inrush current 20A (twidth=310μs measured at 50% Ipeak) 230VAC
outputs: 350mA/2-100V, 500mA/2-80V, 600mA/2-67V, 700mA/2-57V (factory setting), 900mA/2-45V, 1050mA/2-40V
output power: max. 40W depending on the set current limit
connects directly to the KNX line
integrated "push-button dimming" feature
max. 10 units can be synchronized
operating temperature -30....+90C (see datasheet for details)
plastic enclosure

Product Information

Availability In stock
Manufacturer MeanWell
Product path Home Power Supplies LED power supplies and controllers KNX LED DRIVER 40W CC 350mA-1050mA 2-100V
SKU LCM-40KN
Attributes
- Power class 50W
- Weight 240g
- Manufacturer's model LCM-40KN
- Dimensions 123.5 x 81.5 x 23mm
- Approvals KNX
- Extended warranty 3 years
- Approvals KNX
