KNX DIMMING ACTUATOR 4x 230VAC/10A 0-10Vdim

In stock under 5 pcs

SKU#: KAA-4R4V-10

KNX DIMMING ACTUATOR 4x 230VAC/10A 0-10Vdim

KNX DIMMING ACTUATOR 4x 230VAC/10A 0-10Vdim

In stock under 5 pcs

SKU#: KAA-4R4V-10

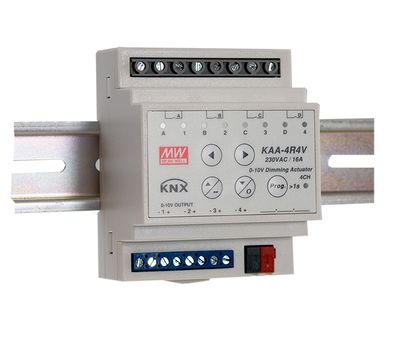

Mean Well KAA-4R4V - 4-channel dimming KNX actuator for DIN rail.

241,47 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

4 separate 230VAC / 10A control relay outputs and 4 separate 0(1)-10V dimming channels
suitable for controlling 0(1)-10V dimmable LED drivers
linear or logarithmic dimming curve programmable with ETS5.0 software
capacitive load max. 220uF
connects directly to the KNX bus
screw terminals
operating temperature -30....+45C
plastic enclosure

Product Information

Availability In stock
Manufacturer MeanWell
Product path Home Automation KNX Home Automation KNX DIMMING ACTUATOR 4x 230VAC/10A 0-10Vdim
SKU KAA-4R4V-10
Attributes
- Weight 247g
- Manufacturer's model KAA-4R4V
- Dimensions 72 x 90 x 57 mm
- Electric number 2810604
- Approvals KNX
- Extended warranty 3 years
- Approvals KNX
