Description

The Kitronik Pin Breakout provides an easy way to connect add-on boards and devices to a Pico board. It also allows the Pico to be moved from one project to another without the need to disconnect all the jumper wires.

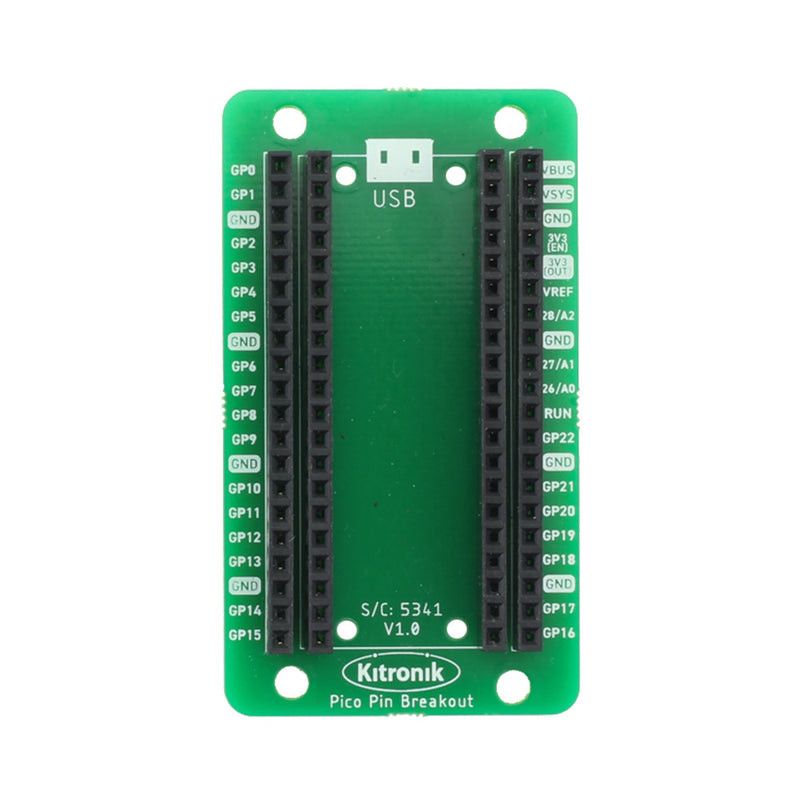

The Pico is connected to the two inner rows of pins. The two outer rows can then be used to connect external devices/circuits. The PCB has clear markings for each pin, and the correct orientation for placing the Pico is also clearly marked.

To use this board, the Pico must be soldered in place.

The Pico Pin Breakout PCB has been designed to keep its footprint as small as possible.

Features

• Provides a convenient interface for controlling add-on circuits with the Raspberry Pi Pico.

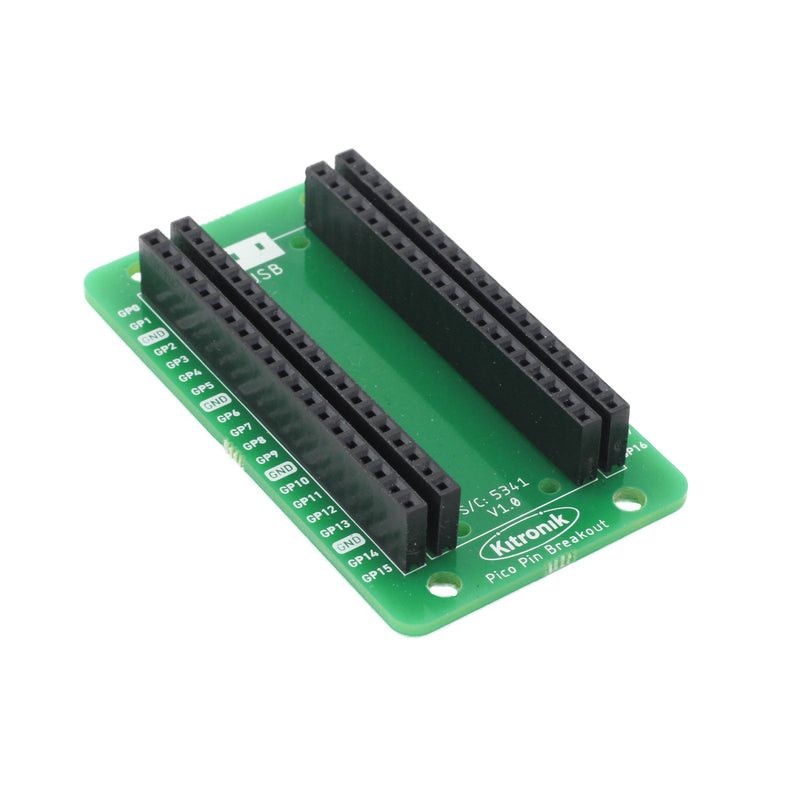

• The board has 2 rows of connector points where a Pico with soldered header pins can be installed directly.
• The outer header rows can be used to connect any of the Pico's I/O pins to a project/prototype.
• Use jumper wires — no soldering required.
• Building Raspberry Pi Pico prototypes is made easy.

Includes

• 1 x Kitronik Pin Breakout for Raspberry Pi Pico.

Dimensions

• Length: 65mm
• Width: 37mm
• Height: 11.2mm

Video

You will need

• Raspberry Pi Pico development board.

Useful link

• Datasheet.pdf
