Features

• Power: 22 W
• Input voltage: 220–240 V AC (50/60 Hz)
• Output current: 600 mA (30–42 V DC)
• Dimmability: Trailing edge dimming
• IP rating: IP20
• Compact size: Designed for small luminaires
• Flicker-free operation: Under 3 % flicker across the entire dimming range
• Deep dimming: Excellent dimming down to below 1 %
• GloStart™: Starts the light at a low dim level (<10%)
• Warranty period: 5 years

Environmental conditions

• Operating temperature: -10 – 45 ºC
• Storage temperature: -20 – 85 ºC
• Humidity: 80 %
• Lifetime (Tc max): approx. 50 000 hours

Protection functions

• Output short-circuit protection: Yes
• Overvoltage protection: Over 43 V
• Surge protection (impulse): 1 kV

Mechanical data

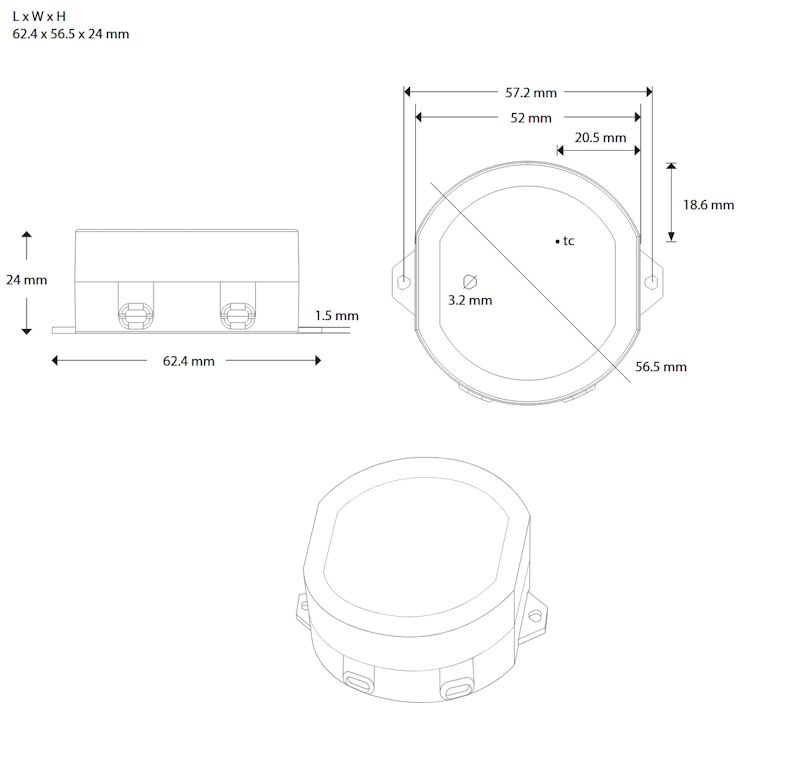

• Dimensions (W × L × H): 62,4 × 56,5 × 24 mm
• Weight: 98,4 g

Links

• Datasheet (PDF)
