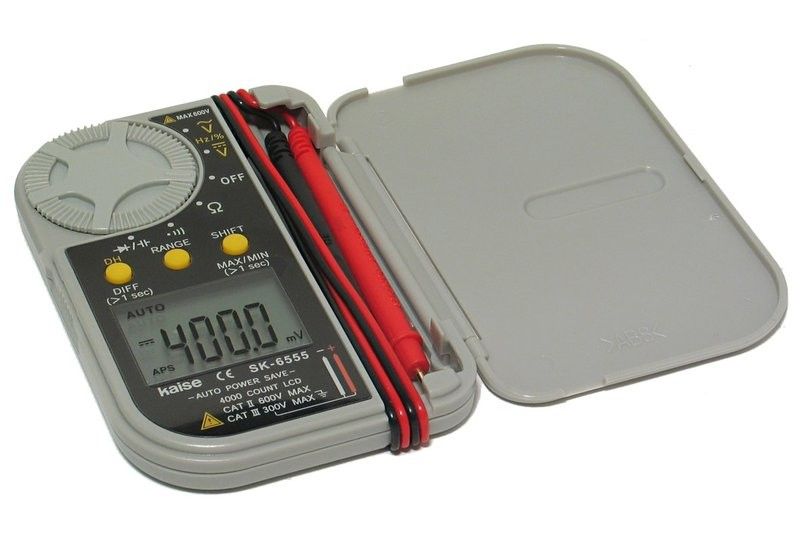

Ultra-thin digital multimeter that fits conveniently in, for example, a breast pocket. The meter and test leads are protected by a hard, fold-back plastic cover.

• voltage measurement: 600 VAC/DC
  • input impedance at least 10Mohm
• resistance: 0 ... 40 Mohm
• continuity test with beeper (< 60 ohm @0,5V)
• capacitance measurement: 50 nF ... 100uF
• diode tester with 1,7V test voltage
• frequency measurement: 1,000 ... 100,0 kHz
• pulse width:
• also includes MIN/MAX, HOLD and DIFF functions
• operates on a single CR2032 battery (included)
• automatic power-saving mode
• approvals: IEC-61010-1 (CAT II 600V ,CAT III 300V, EMC)
