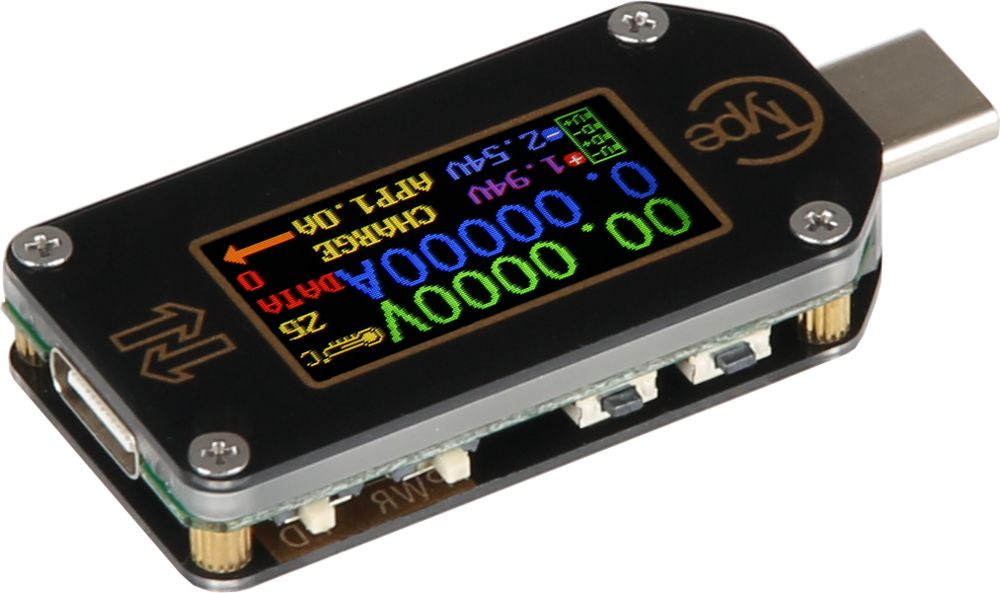

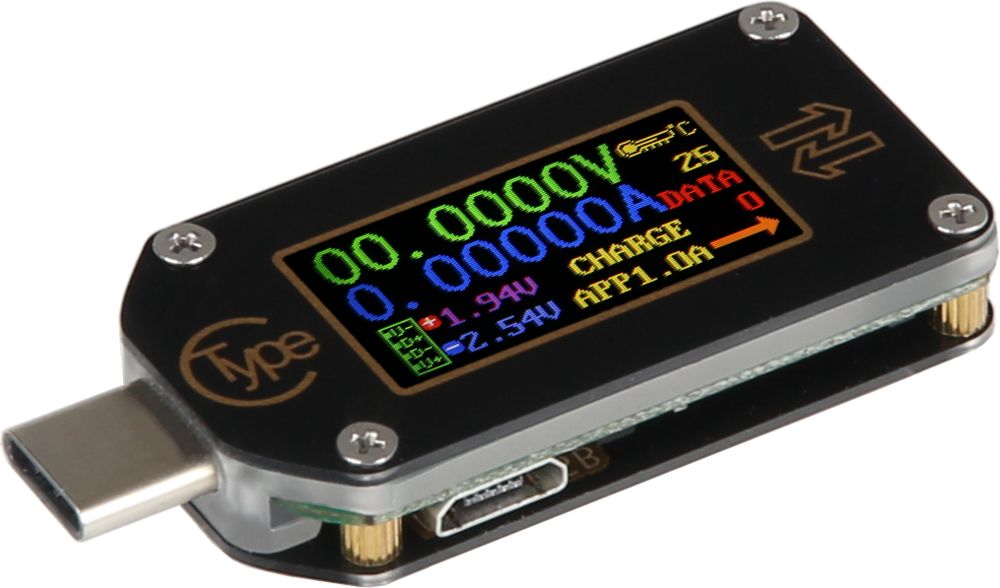

The TC66C is a compact and multifunctional USB C voltage/current/power meter.

Additionally, the device offers convenient analysis via a wireless BT connection.

Specifications

• DISPLAY: 0.96 inch IPS display
• REFRESH RATE: 2 Hz
• CONNECTIONS: USB Type C 3.0, BT wireless connection
• QUICK CHARGE DETECTION: QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC, PD
• INPUT VOLTAGE: 3.5–24 V
• VOLTAGE MEASUREMENT RANGE: 0.005 - 30 V
• VOLTAGE RESOLUTION: 0.1 mV
• VOLTAGE ACCURACY: ± 0.5 ‰ (+10 digits)
• CURRENT MEASUREMENT RANGE: 0 - 5 A
• CURRENT RESOLUTION: 0.01 mA
• CURRENT ACCURACY: ± 1 ‰ (+20 digits)
• POWER MEASUREMENT RANGE: 0 - 150 W
• CAPACITY ACCUMULATION RANGE: 0 - 99 999 mAh
• ENERGY ACCUMULATION RANGE: 0 - 999.99 Wh
• LOAD IMPEDANCE RANGE: 1 – 9 999.9 Ω
• TEMPERATURE MEASUREMENT RANGE: 0 - 80 °C
• OPERATING TEMPERATURE RANGE: 0 – 45 °C
• TEMPERATURE MEASUREMENT ERROR: ± 3 °C
• DIMENSIONS: 49 x 22 x 8 mm
• WEIGHT: 22 g
• PACKAGE INCLUDES: TC66C multimeter
